PK360 | OWNER’S GUIDE 13
ASSEMBLY INSTRUCTIONS
STEP
5

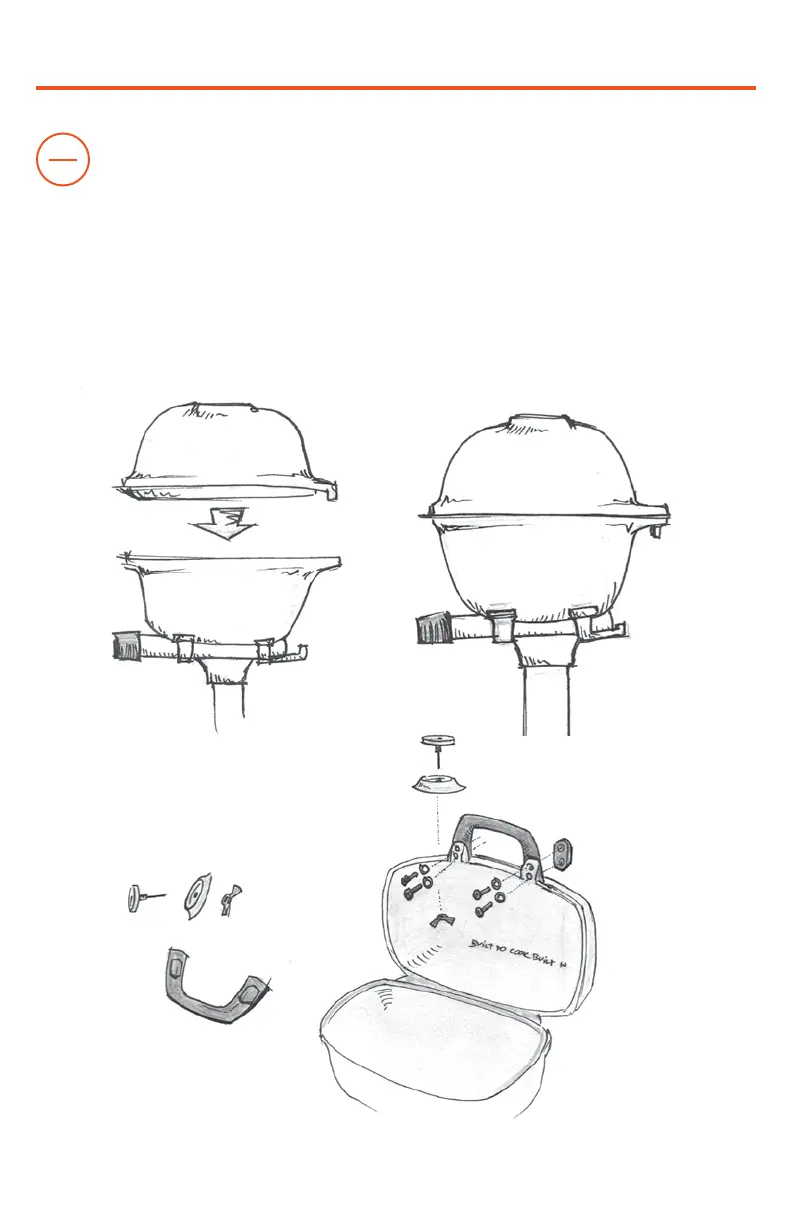

ASSEMBLE TOP CAST AS FOLLOWS:
1) Place Top Cast flat on Bottom Cast, oriented as shown in picture. The Top
Cast is held in place by the tabs along the back side and gravity. There is no
hardware required to secure the Top Cast in place. Pretty Clever, we know.
2) Open and close Top Cast to make sure hinge is oriented properly.
3) With top open, assemble front Handle using screws and inserts provided.
4) Assemble Tel-Tru Thermometer and Thermometer Housing using wing nut.
