AERMACCHI MB-339
22
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
EN

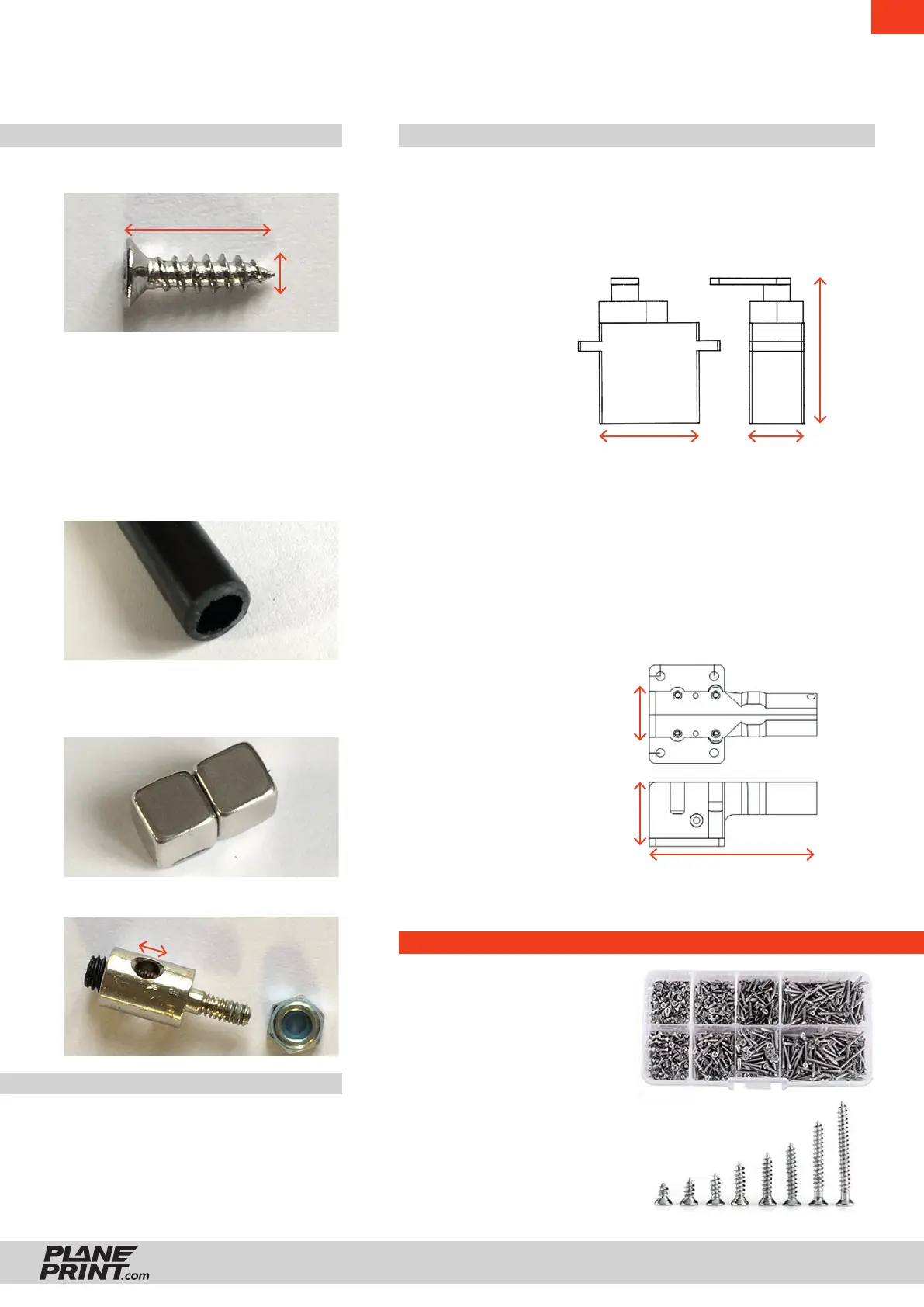

MATERIALS
• some tapping screws Ø2*8mm
2 mm
8 mm
• Suitable screws for the rectraction gear
• CA super glue, liquid and liquid medium
• Activator
• servo extension cable
• V-cable for the fl ap-servos
• servo cable for the Retraction Gear
• Velcro fastening strap for the battery
• steel round bar Ø3mm
• Carbon tube Ø8*1000mm 1 Piece
• Carbon wire Ø1,2*1000mm 3 Pieces
• Neodym-Super-Magnet
5x5x5mm 4 Pieces
• rod connection 9 Pieces
2 mm
TOOLS
• Cutter knife
• Philips screwdriver
• Needle nose pliers
• Drill Ø3mm, Ø2,5mm, Ø1,5mm
RC COMPONENTS
Engine: • EDF 70 mm, 4S or 6S
We use the FMS 70
Servo 6 Pieces: • Hitec HS-55
• TURNIGY TGY-50090M
max. 12 mm
(0.47 inches)
max. 22,5 mm
(0.88 inches)
max. 32 mm
(1.26 inches)
BEC-Controller: BEC, suitable for your EDF
Battery pack (~400 g): 4S or 6S LiPo-Akku ca. 4.200 MAH
Receiver: min. 7 Channel
2x Servoless Retraction Gear small (32mm x 25mm)
1x Servoless Retraction Nose-Gear small
TIPP
We recommend the
purchase of a small range of
screws, which can be used
for all future PLANEPRINT
models.
Simply search the Internet
for: M2 Flat Head Tapping
Screw Assortment …
max. 21 mm
(Nose-Gear
can be higher)
max. 19 mm
max. 55 mm
