AERMACCHI MB-339
34
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
EN

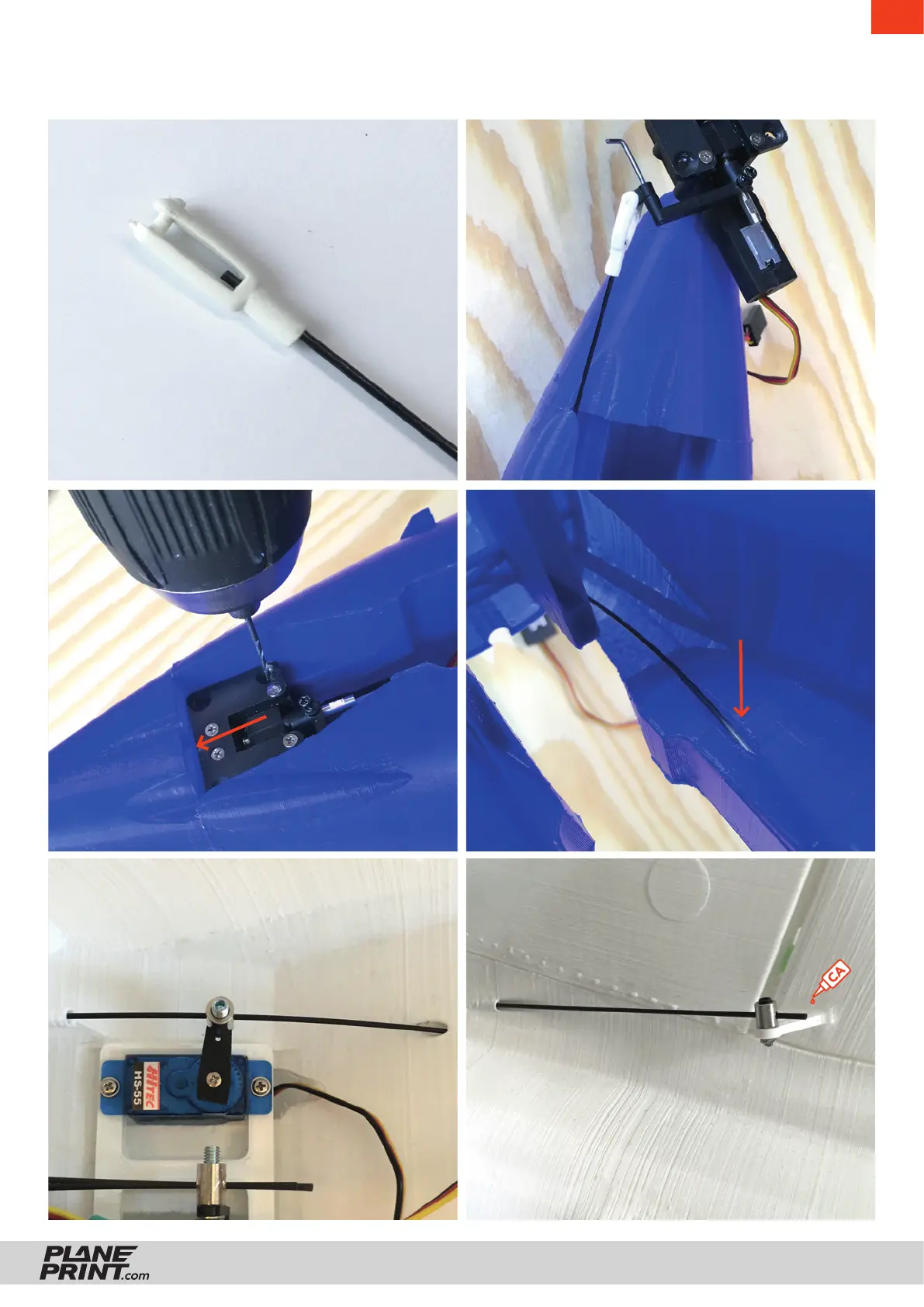

Assembling nose landing gear
The floor must be threaded here.
Position the gear at the very front and
carefully drill the holes for the screws.
Don‘t forget to put the bowden through
the servo‘s rod connection.
Glue on the pin horn here. It has to face
forward! The linkage must be on the axis
of rotation of the rudder.
In the end he comes out here.
Only a carbon bowden
is used to link the rudder
and nose gear. Glue the
fork horn in front.
Only a car-
bon bowden
is used to
link the rud-
der and nose
gear. Glue
the fork horn
in front.
