INTRODUCTION
BR EECH S ENSO RS AND DETEN TS
FIG.1

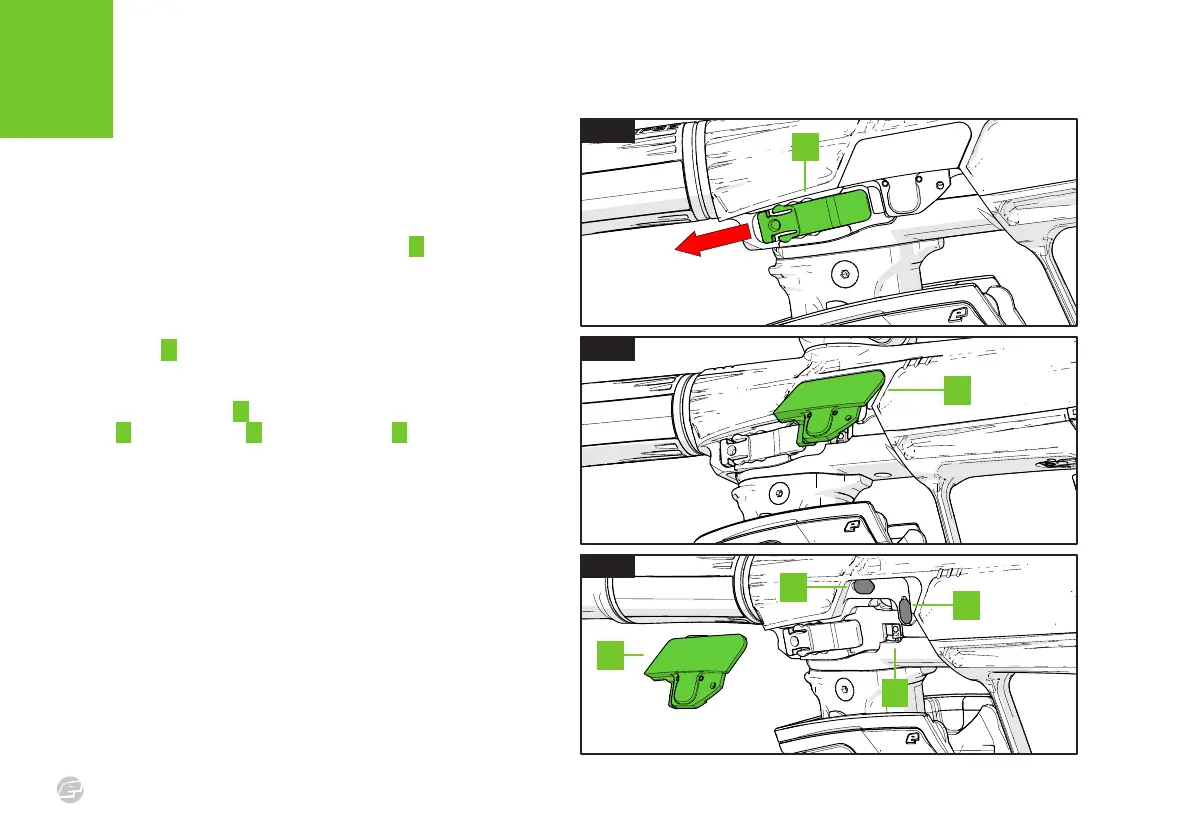

Once the foregrip sleeve has been removed (see page 18) you can
access the breech sensor (BS) cover release clips A which are on
both sides of the marker. Slide the clips forwards (towards the barrel)
to release the breech sensor (BS) covers.
FIG.2
The BS covers B will now be free to remove.
FIG.3
Simply lift the BS covers B away from the body to expose the BS
sensors C rubber detents D and spare detent E .
A
B
B
D
E
C
FIG .1
FIG .2
FIG .3
