US ER INT E RFA CE PARA METE RS

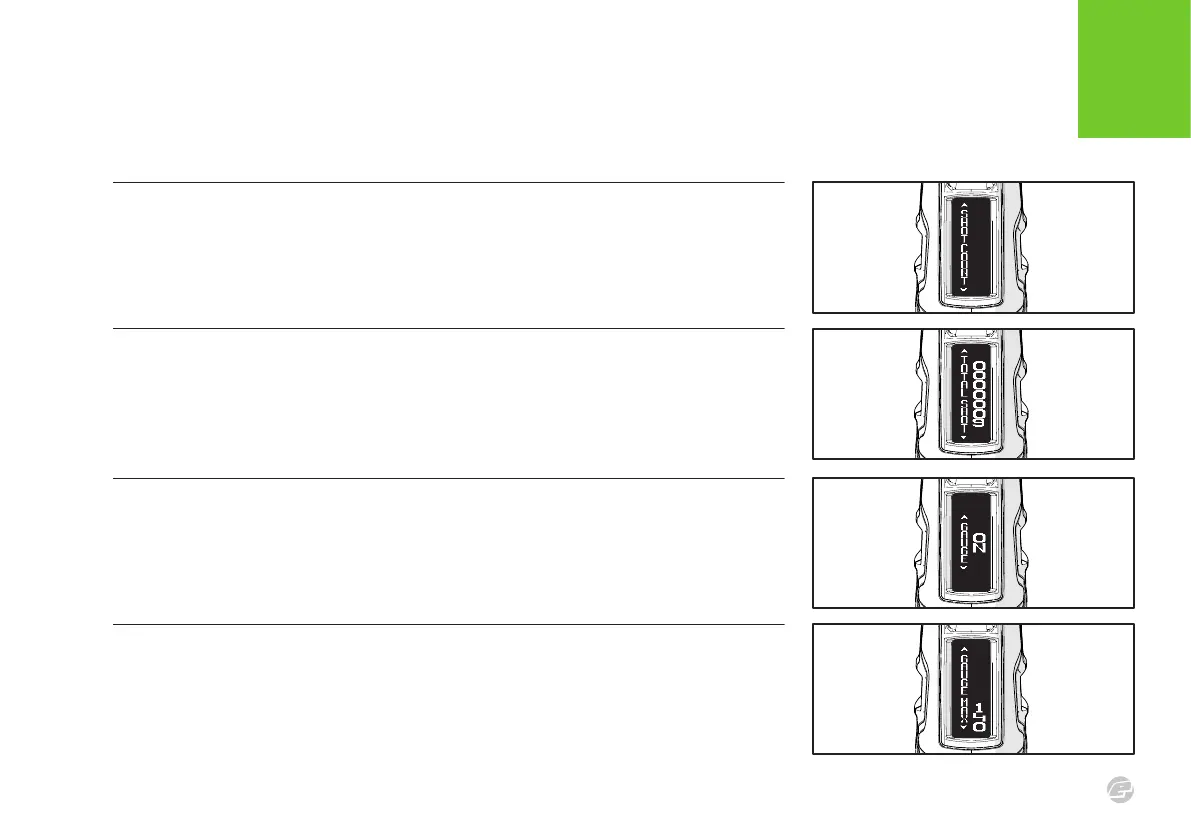

FIG .2
GAUGE MAX PARAMETER
Shot counter gauge start point.
> RANGE : 100 - 2000 in increments of 10.
FIG .1
GAUGE PARAMETER
This toggles the visibility of the shot counter
gauge graphic on the shot counter run screen.
> ON : Gauge graphic enabled.
> OFF : Gauge graphic disabled.
FIG .4
TOTAL SHOTS
This non-adjustable item displays the total
number of times that the solenoid has been
energised.
FIG .3
SHOT COUNT MENU
This menu contains items associated with the
shot counter.
