CONTINUED

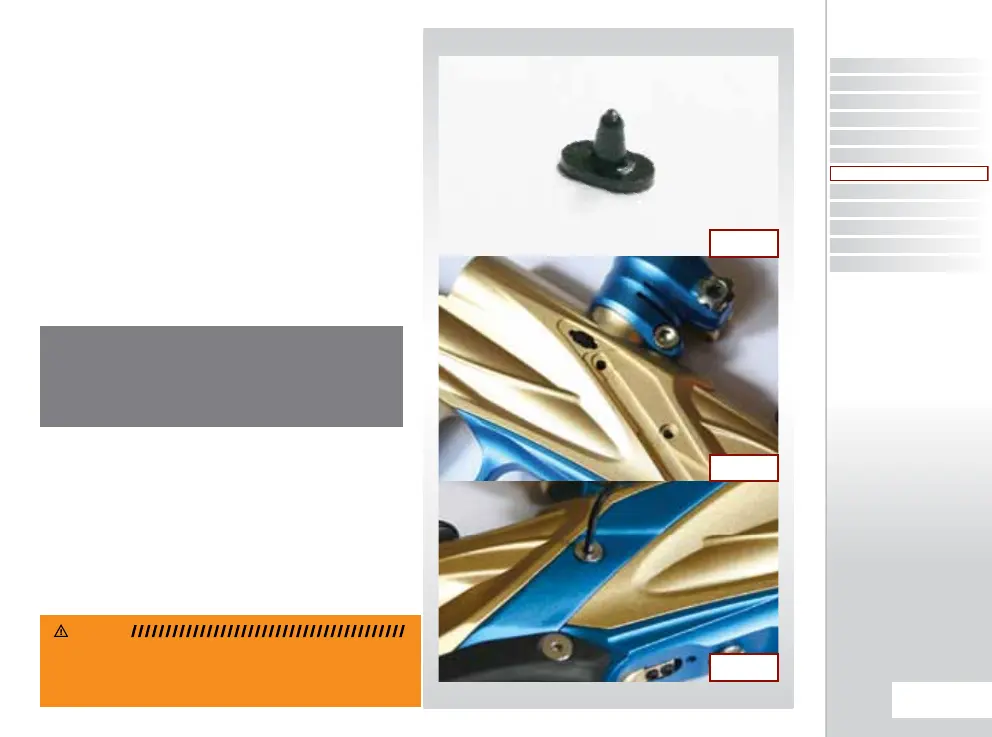

Remove the rubber detent and using a dry cotton bud
clean the detent and it’s location point in the Ego10 Body.
SEE FIGURE 9.4 Replace the detent back into the Ego10
body SEE FIGURE 9.5 and place the BBSS back into the
designated slot in the body SEE FIGURE 9.2. Ensure that
the sensor is face down in the body i.e. looking into the
breech.
Replace the sensor cover and using a 5/64" hex key, replace
the bream beam sensor cover retaining screw to hold the
sensor cover in place SEE FIGURE 9.6.
Repeat the procedure for the opposite side of the Ego10.
You have now cleaned your break beam sensor system.
WARNING: IF YOU ARE AT ALL UNSURE OF PERFORMING
THE MAINTENANCE PROCEDURE PLEASE CONTACT YOUR
NEAREST ECLIPSE SERVICE CENTRE. SEE PAGES 7273
WARNING
NOTE: WHEN CLEANING THE BREAK BEAM SENSOR
SYSTEM INSPECT THE CONDITION OF RUBBER FINGER
DETENTS AND REPLACE IF NECESSARY. ENSURE THAT THE
RECEIVER SENSOR INDICATED BY A RED MARK & RED
HEAT SHRINK IS LOCATED ON THE RIGHTHAND SIDE OF
THE MARKER BODY.
FIG 9.6
FIG 9.5
FIG 9.4
