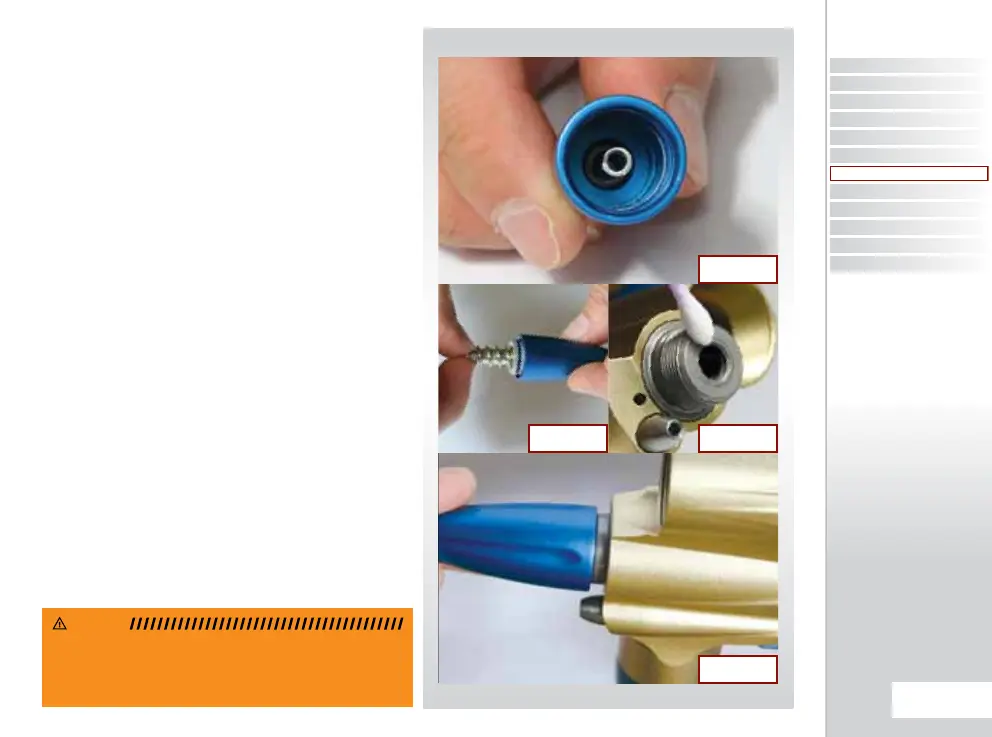

I nsert the front spring (silver in colour) into the LPR cap, so
that it rests neatly on the adjuster screw SEE FIGURE 11.5.
Place the gold coloured spring onto the LPR piston and
insert piston and spring into the LPR cap, o-ring end rst
SEE FIGURE 11.6.
Before screwing the LPR cap back onto your Ego10, use a
dry cotton bud to clean the 010 NBR 70 o-ring inside the
LPR body SEE FIGURE 11.7. Lubricate this seal using a
light gun oil, such as Eclipse Gun Oil.
Replace the LPR cap by screwing it onto the LPR body in
the Ego10 SEE FIGURE 11.8.
FIG 11.6 FIG 11.7
FIG 11.8
FIG 11.5
WARNING: IF YOU ARE AT ALL UNSURE OF PERFORMING
THE MAINTENANCE PROCEDURE PLEASE CONTACT
YOUR NEAREST ECLIPSE SERVICE CENTRE. SEE PAGES
7273
