CLEANING AND
LUBRICATING THE BOLT

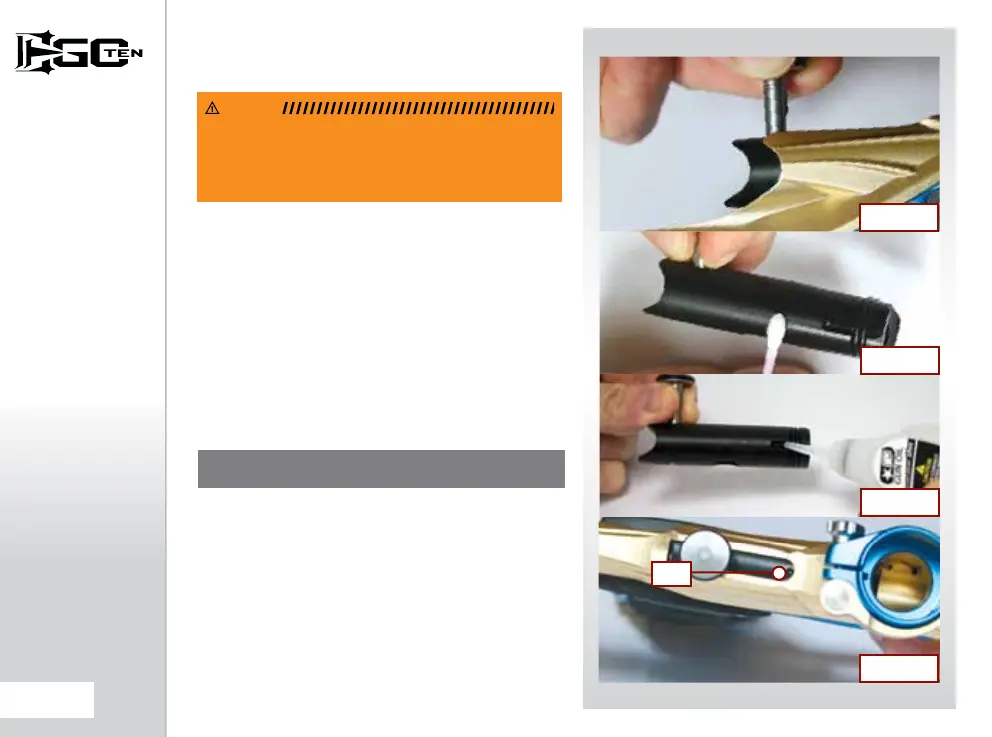

Raise the bolt pin and remove the bolt and bolt pin from
the Ego10 marker body FIGURE 13.1.
Using a dry cotton bud remove any paint or grease from
the surface of the bolt SEE FIGURE 13.2.
Lubricate the detent slots on either side of the bolt with
gun oil, ensuring that a drop of oil is placed on the o-rings
at the point where they cross the detent slots SEE FIGURE
13.3.
Replace the bolt, locking the bolt pin into the
designated slot in the rammer using the dot on the bolt as
a reference guide SEE FIGURE 13.4.
WARNING: DEGAS YOUR MARKER, DISCHARGING ANY
STORED GAS IN A SAFE DIRECTION, AND REMOVE THE
BARREL, LOADER, AIR SYSTEM AND ANY PAINTBALLS
TO MAKE THE MARKER EASIER AND SAFER TO WORK
ON.
NOTE: WE RECOMMEND THE USE OF ECLIPSE GUN OIL ON
THE EGO10 RAMMER AND BOLT.
FIG 13.2
FIG 13.1
FIG 13.3
DOT
FIG 13.4
56.
MAINTENANCE
