PLANET ECLIPSE EGO TEN - Page 67

CONTINUED

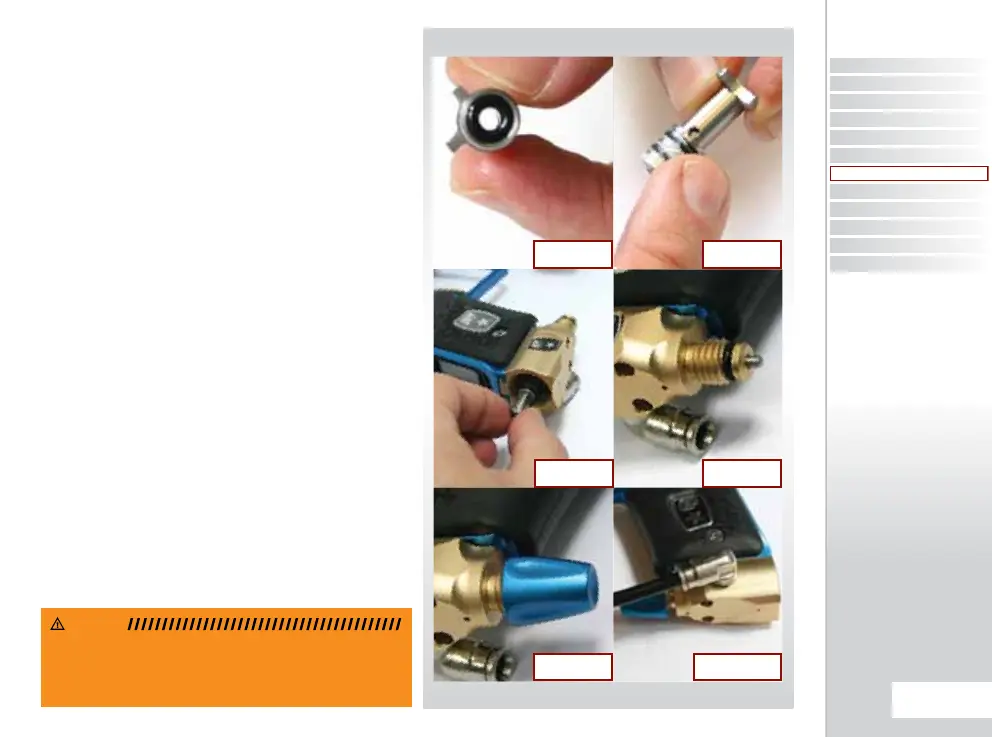

Clean and check the condition of the single internal
006 NBR90 o-ring in the front of the OOPS insert, replace
if necessary SEE FIGURE 18.5. Lubricate all three of these
o-rings liberally using Eclipse Grease SEE FIGURE 18.6.
Replace the OOPS insert into the OOPS body ensuring
that the o-ring end goes in rst, pushing it into place SEE
FIGURE 18.7
.
Lubricate the narrow end of the OOPS pin with a smear
of Eclipse Grease and push the pin, narrow end rst, into
the OOPS body so that it sits in the OOPS insert and pokes
through the front of the OOPS body SEE FIGURE 18.8.
Screw the OOPS knob back onto the OOPS body until only
a couple of threads are showing SEE FIGURE 18.9.
Reconnect the macroline hose to the tting on the OOPS
body SEE FIGURE 18.10.
You have now successfully cleaned and maintained your
On/O purge system.
FIG 18.10FIG 18.9
FIG 18.8FIG 18.7
FIG 18.6
FIG 18.5
WARNING: IF YOU ARE AT ALL UNSURE OF PERFORMING
THE MAINTENANCE PROCEDURE PLEASE CONTACT
YOUR NEAREST ECLIPSE SERVICE CENTRE. SEE PAGES
7273
