ECLIPSE SHAFT 3 BARREL
NOTE: THE EGO10 WILL ONLY ACCEPT COCKER THREADED
BARRELS. DO NOT USE ANY OTHER TYPE OF BARREL THREAD.
A
B
D
C
E
NOTE: THE BORE SIZE OF YOUR SHAFT 3 MAY VARY
ACCORDING TO THE MODEL OF EGO10 YOU HAVE.

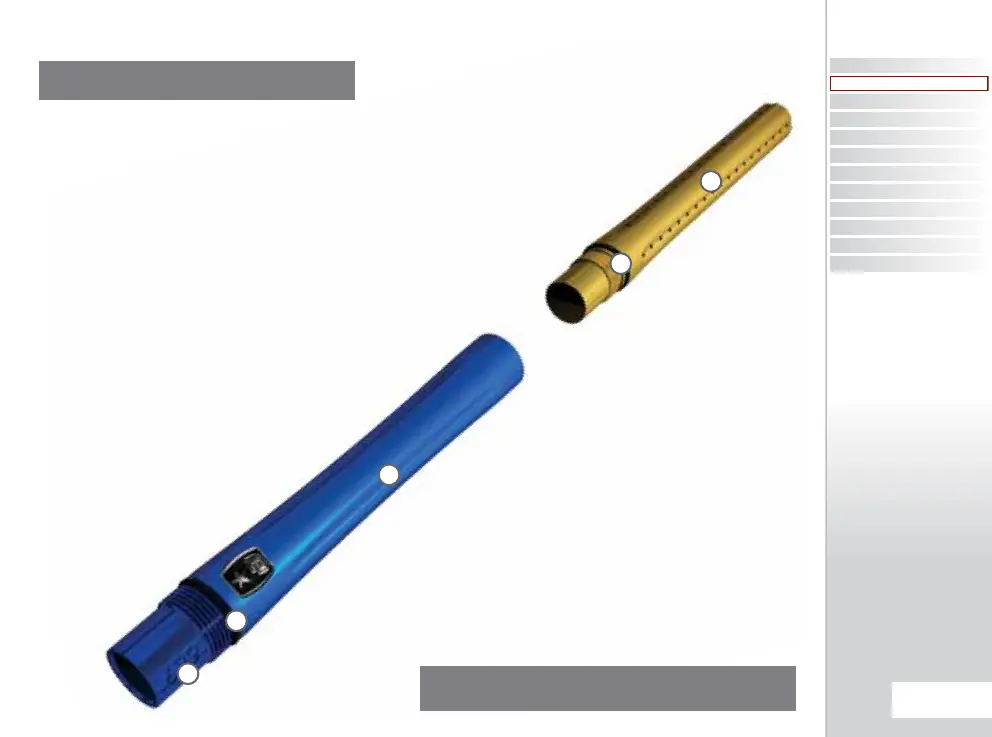

Your Eclipse Ego10 comes as standard with an Eclipse Shaft 3 barrel.
The barrel screws into the body of the Ego10 using a
right hand thread
meaning that if you hold the Ego10 pointing away from you the barrel
screws into the body in a counter-clockwise direction.
The barrel comprises of two parts, a barrel back and a barrel front .
The two parts are joined together with a
left hand thread
meaning that
if you hold the barrel, with the back nearest you, the front unscrews in a
counter-clockwise direction. The bore size of the barrel back is engraved
at the end of the barrel back .
On the barrel back there is a 016 NBR 70 o-ring which prevents the
barrel from vibrating loose from the Ego10 body when the marker is
red. There is also a 015 NBR 70 o-ring on the barrel front helps with
alignment when the two sections are screwed together.
Replace and lubricate these o-rings with Eclipse Grease as necessary.
E
D
C
B
A
