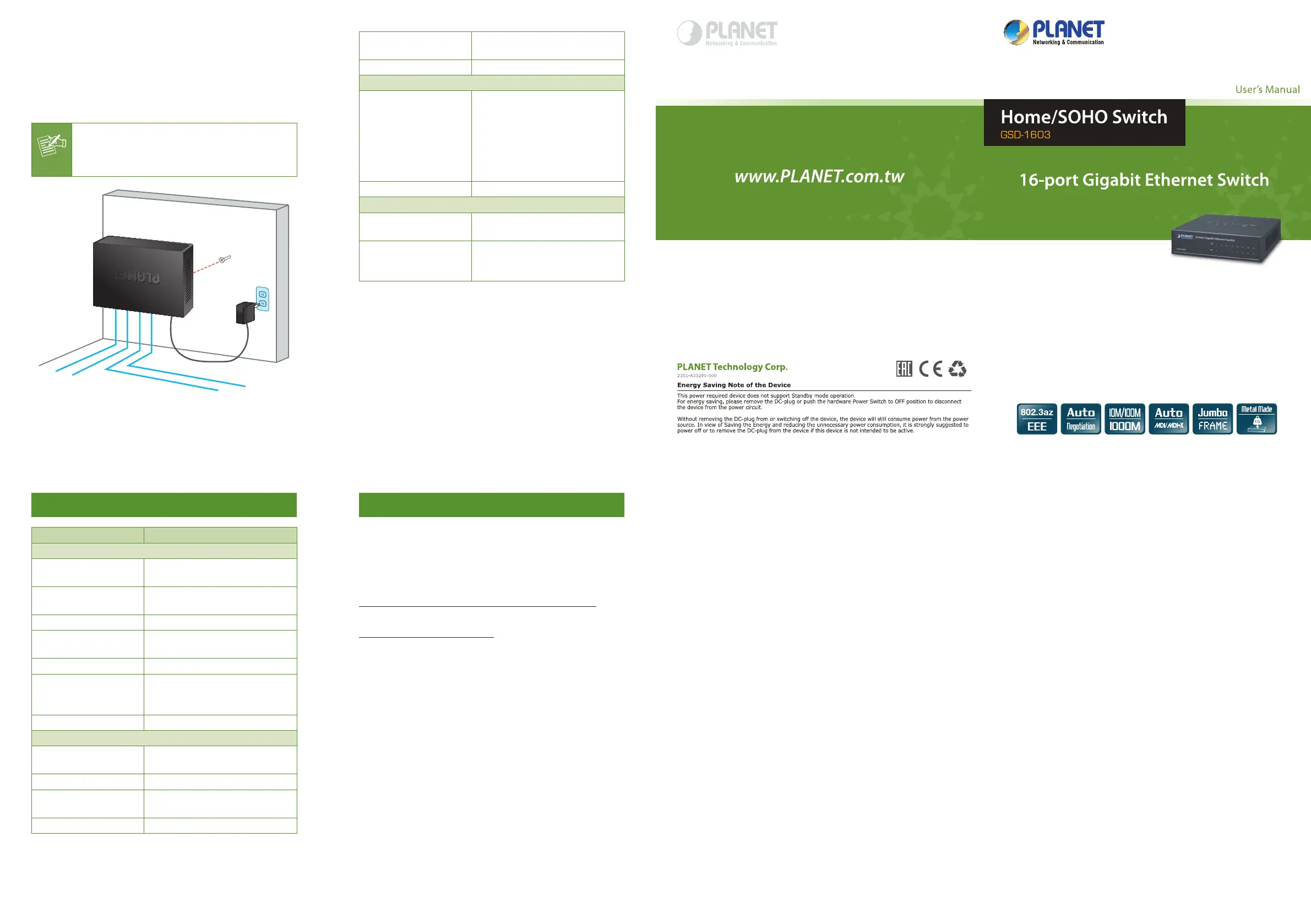

Wall-mount Installation
Step 1: Please nd the wall that can mount the GSD-1603.
Step 2: Install two screws on the wall.
Step 3: Hang the GSD-1603 on the screws from the wall.
Step 4: Repeat step 4 of Desktop Installation for power
supply to the GSD-1603.
Note
Before mounting the device to the wall, please
check the location of the electrical outlet and
the length of the Ethernet cable.
RJ45
UTP Cable
12V Power
Adapter
Throughput
(packet per second)
23.8Mpps@64Bytes
Jumbo Frame 9K
Standards Conformance
Standards Compliance
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-duplex Flow
Control)
IEEE 802.3az Energy Efcient
Ethernet (EEE)
Regulatory Compliance FCC Part 15 Class B, CE
Environments
Temperature
Operating: 0~50 degrees C
Storage: -10~70 degrees C
Humidity
Operating: 5% to 95%,
Storage: 5% to 95%
(non-condensing)
7. Product Specications
Product GSD-1603
Hardware Specications
10/100/1000BASE-T
Ports
16 auto MDI/MDIX ports
LED Display
One for Power, one for Link/Act
per port
Enclosure Metal
Dimensions
(W x D x H)
155 x 118 x 46 mm
Weight (g) 538g
Power Requirements
(External power
adapter)
12V DC, 1A
Power Consumption 10 watts/34 BTU
Switch Specications
Switch Processing
Scheme
Store-and-Forward
Address Table 8K
Flow Control
Back pressure half duplex, IEEE
802.3x pause frame full duplex
Switch Fabric 32Gbps
8. Customer Support
Thank you for purchasing PLANET products. You can browse
our online FAQ resource on PLANET Website rst to check
if it could solve your issue. If you need more support
information, please contact PLANET switch support team.
PLANET online FAQ :
http://www.planet.com.tw/en/support/faq.php?type=1
Switch support team mail address :
support_switch@planet.com.tw
Copyright © PLANET Technology Corp. 2015.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other
trademarks belong to their respective owners.
