Note
Cable Distance for Switch
The cable distance between the GSD-604HP
and PC/PD devices should not exceed 100
meters for UTP/STP cable.
Note
Make sure the wiring is correct
Category 3/4/5 cable can be used for
10/100Mbps operation. To reliably operate
your network at 1000Mbps, you must use
an Unshielded Twisted-Pair (UTP) Category
5/5e cable, or better data grade cabling.
While a Category 3 or 4 cable may initially
seem to work, it will soon cause data loss.
Step 6: Supply power to the Gigabit PoE+ Switch.
A. Connect one end of the power cable to the Switch.
B. Connect the power plug of the power cable to a
standard wall outlet.
When the Gigabit PoE+ Switch receives power, the
Power LED should remain solid Green.

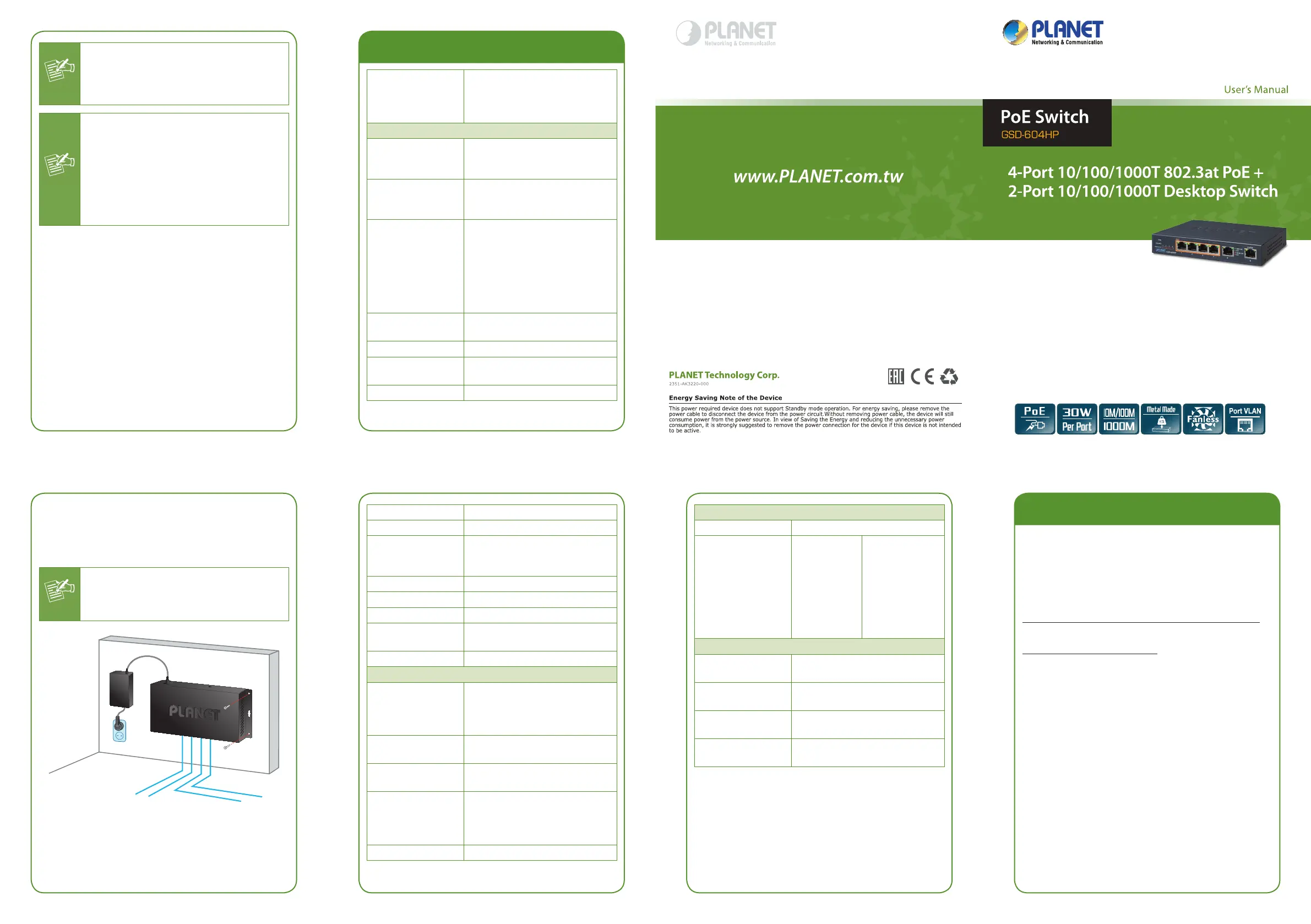

Wall-mount Installation
Step 1: Please nd the wall that can mount the
GSD-604HP.
Step 2: Install four screws on the wall.
8. Product Specications
Model
GSD-604HP
4-Port 10/100/1000T 802.3at
PoE + 2-Port 10/100/1000T
Desktop Switch
HardwareSpecications
Network Connector
6-Port RJ45 for
10/100/1000BASE-T, auto MDI/
MDIX
PoE Inject Port
4-Port with 802.3af/at PoE
injector function (port 1 to port
4)
LED Display
System: Power (Green)
Per PoE port:
PoE (Orange, port 1 to port 4)
PoE MAX (Orange)
Ethernet port:
1000 LNK (Green)
10/100 LNK (Orange)
Switch Architecture
Store and Forward switch
architecture
Thermal Fan Fanless design
MAC Address Table
8K MAC address table with auto
learning function
Switch Fabric 12Gbps
Step 3: Hang the GSD-604HP on the screws from the
wall.
Step 4: Repeat step 6 of Desktop Installation for
power supply to the GSD-604HP.
Note
Before mounting the device to the wall,
please check the location of the electrical
outlet and the length of the Ethernet cable.
RJ45
UTP Cable
Switch Throughput 8.92Mpps @64 bytes
Jumbo Packet 9216 bytes
Flow Control
Back pressure for half-duplex.
IEEE 802.3x pause frame for
full-duplex
Power Requirements 55V DC, 1.1A
ESD Protection 6KV DC
Power Consumption Max. 60 watts, 204.6 BTU
Dimensions
(W x D x H)
160 x 92.5 x 28mm
Weight 374g
Power over Ethernet
PoE Standard
IEEE 802.3af Power over
Ethernet/PSE
IEEE 802.3at Power over
Ethernet Plus/PSE
PoE Power Supply
Type
End-span
Power Pin
Assignment
1/2(+), 3/6(-)
PoE Power Output
Per Port 54V DC, 300mA. max.
15.4 watts (IEEE 802.3af)
Per Port 54V DC, 600mA. max.
30 watts (IEEE 802.3at)
PoE Power Budget 55 watts
Standard Conformance
EMI Safety FCC Class B, CE
Standard
Compliance
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
Ethernet
Fast Ethernet
Gigabit Ethernet
Flow Control
Power over
Ethernet
Power over
Ethernet Plus
Environment
Operating
Environment
0 ~ 50 degrees C
Storage
Environment
-10 ~ 70 degrees C
Operating Humidity
5 ~ 95%, relative humidity, non-
condensing
Storage Humidity
5 ~ 95%, relative humidity, non-
condensing
9. Customer Support
Thank you for purchasing PLANET products. You can
browse our online FAQ resource on PLANET Website
rst to check if it could solve your issue. If you need
more support information, please contact PLANET switch
support team.
PLANET online FAQ:
http://www.planet.com.tw/en/support/faq.php?type=1
Switch support team mail address:
support_switch@planet.com.tw
Copyright © PLANET Technology Corp. 2015.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All
other trademarks belong to their respective owners.
