Connect with 802.3at devices

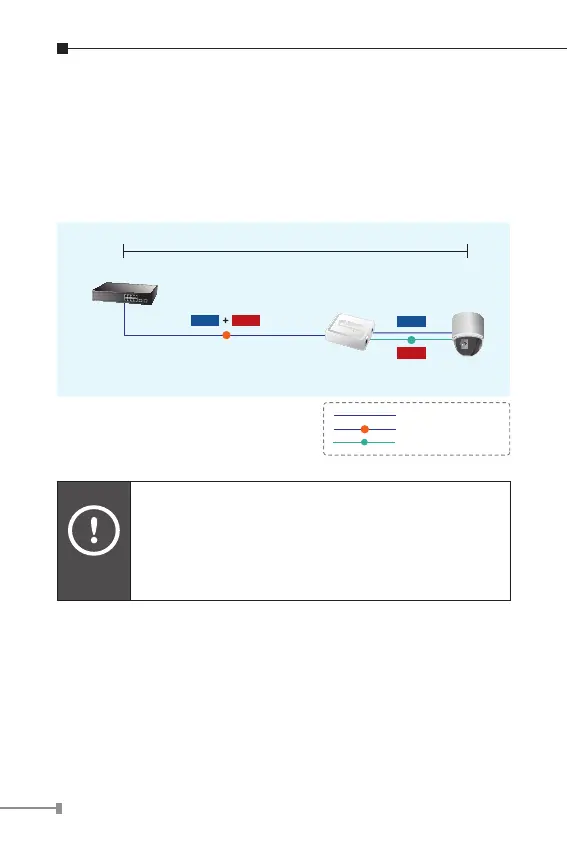

The POE-161S also provide the alternative to make the non IEEE
802.3at devices the possibility to connect with an IEEE 802.3at
in-line power device like Power over Ethernet Injector or Power
over Ethernet Switch, the gure is as below.
DC
Power Line (DC)
100 meters
PTZ Speed
Dome
1000Base-T UTP
PoE
1000Base-T UTP with PoE
802.3at in-line power Switch
PoE
Power
Data
POE-161S
Power
Data
DC
Hint
With IEEE 802.3at Power over Ethernet pre-stan-
dard; the POE-161S also can co-work with IEEE
802.3at End-Span High Power over Ethernet
Switch that feeding power over pin 1, 2, and 3, 6.
For example: the WGSD-8020P.
