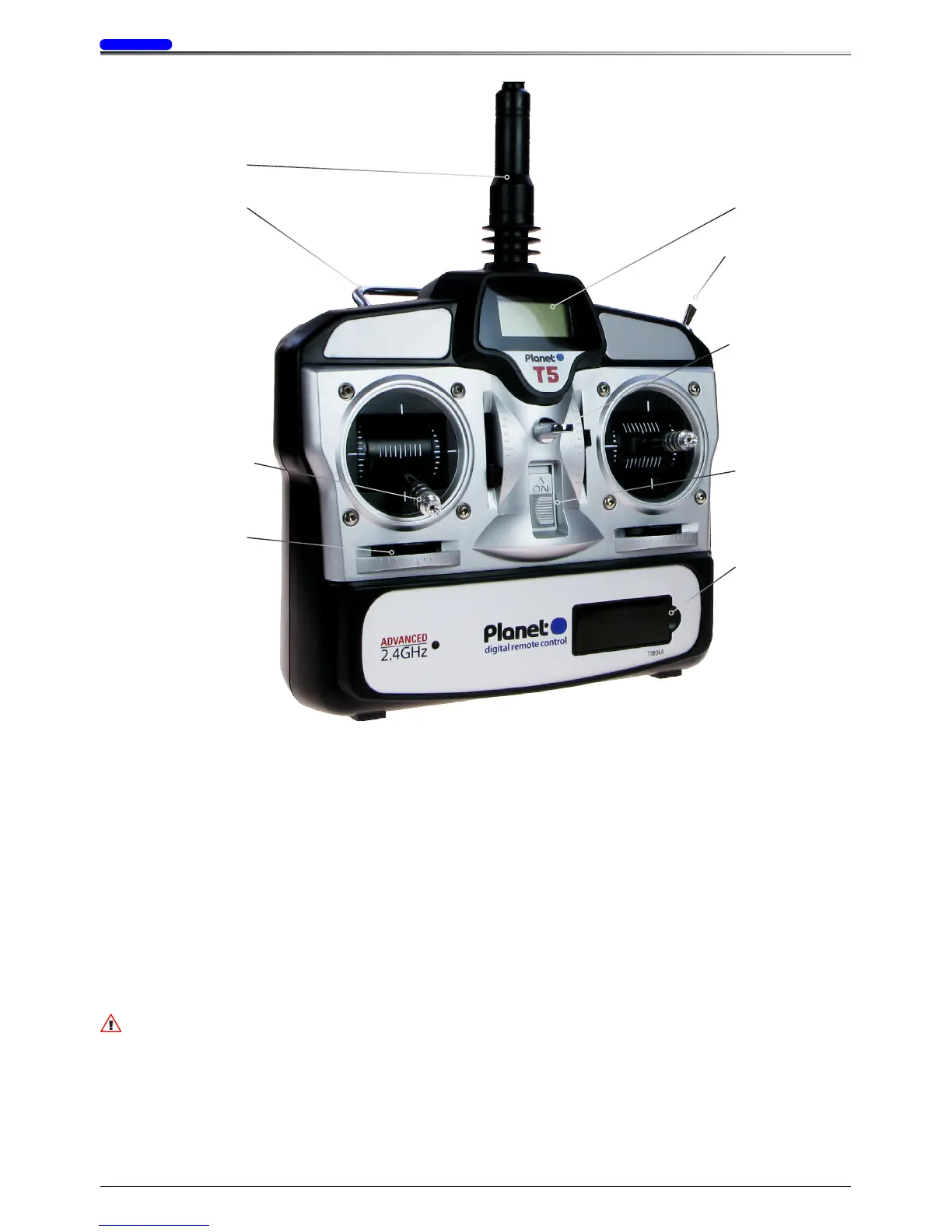

TRANSMITTER FEATURES
Aerial
Carry handle
Neck strap hang point
Battery status LCD
5th channel switch
Dual axis control
stick with adjustable
height/spring tension
Control trim
Reversing switches
ON/OFF switch
CONTROL TRIMS
These are used to fine trim the position of the servos.
CHANNEL 5 SWITCH
The 5th channel retract switch on the upper case operates a servo at normal or slow rate. The slow rate allowing
for more realistic deployment of spoilers, scale retractable undercarriage or flaps. Normal rate allowing for use
with cameras, lights, and other functions requiring a standard speed channel.
To switch from slow to normal rate use the 5th channel dip switch located in the reversing switch bay.
BATTERY STATUS LCD
This display provides a digital readout of Transmitter voltage. Stop flying and replace the batteries when voltage
display falls to 4.4V.
WARNING!
Failure to stop flying immediately when the display reads 4.4V or less may lead to loss of control!
REVERSING SWITCHES
Reversing switches are used to reverse the direction of aileron, elevator, throttle and rudder functions.
The reversing switches are located beneath a removable cover on the front panel of the transmitter. See over the
page:
