7

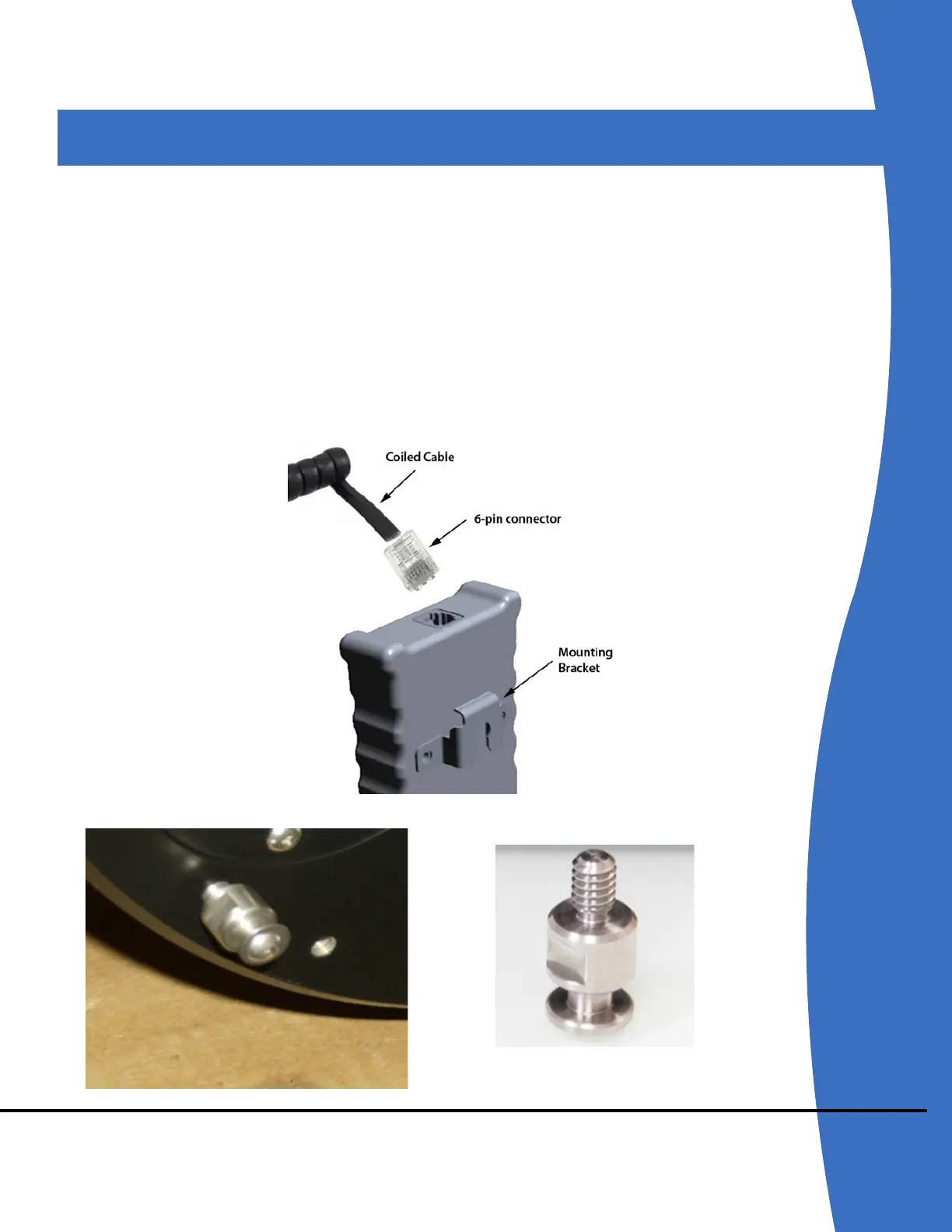

Mounting the Hand Controller
The hand control mounting bracket allows the hand control to be mounted to the tele-
scope back plate using the included mounting post. Attach the mounting post to the
telescope back plate. The telescope has eight ¼-20 threaded holes on the back plate
for mounting accessories. The holes are positioned at 2, 4, 8 and 10 o’clock on the back
plate in groups of two. Thread in the mounting post into one of the back plate holes.
The stud can also be threaded in place of one of the mounting screws that mount the
nder scope bracket or the EFA Electronics box, as shown below.
The mounting bracket on the back of the hand control will now slide over the post to
hold the hand control securely in place.
