• Information on the hydraulic sistem

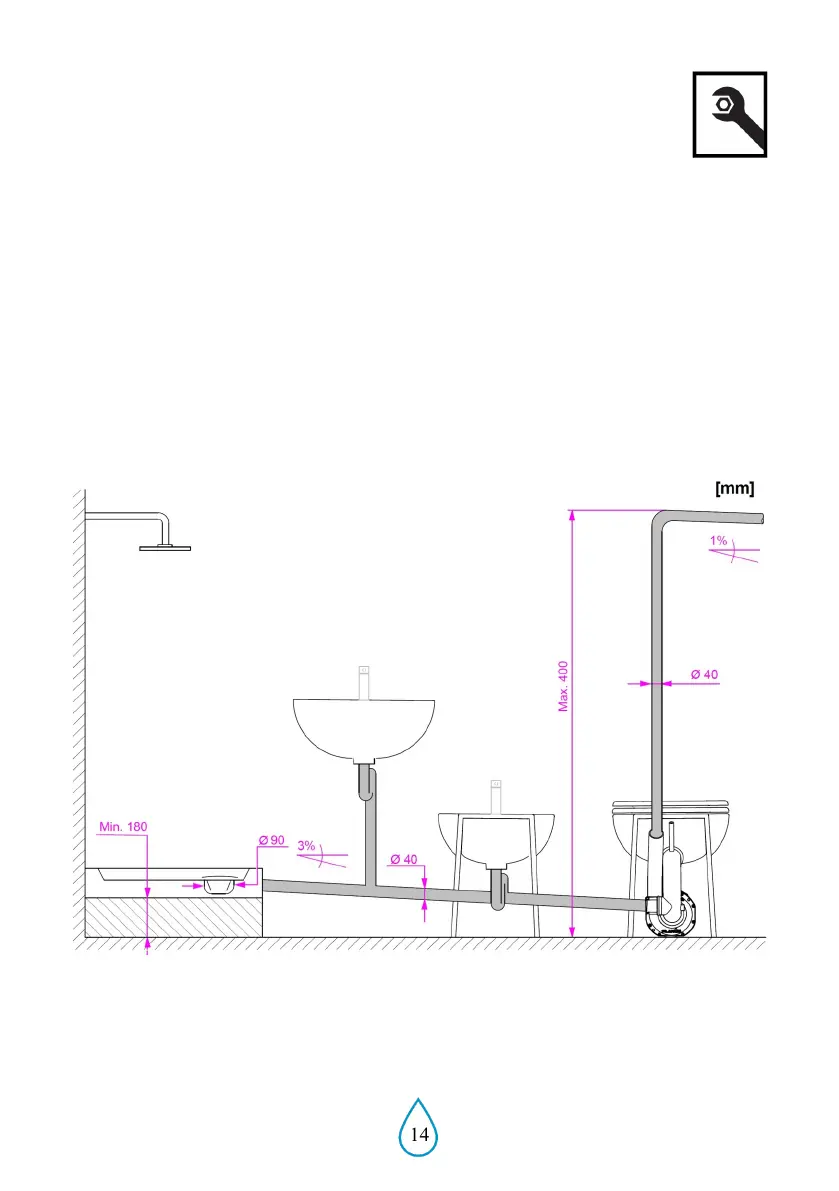

In order for the system to work properly, diameters and slopes should be
chosen according to the diagram below.
In the specific case of the shower tray, the difference in height between the
inlet of the drain and the reference plane must be at least 18 cm, to which
must be added the required slope (3 cm for each linear metre of pipe).
It is necessary to use the drain drain drain 90 mm.
