• Indications and preliminary suggestions
In order to realize a wire-wall installation, with not visible tubes it is suggested
the creation of a wall (preferably plasterboard), to create a gap suitable for the
passage of the pipes.

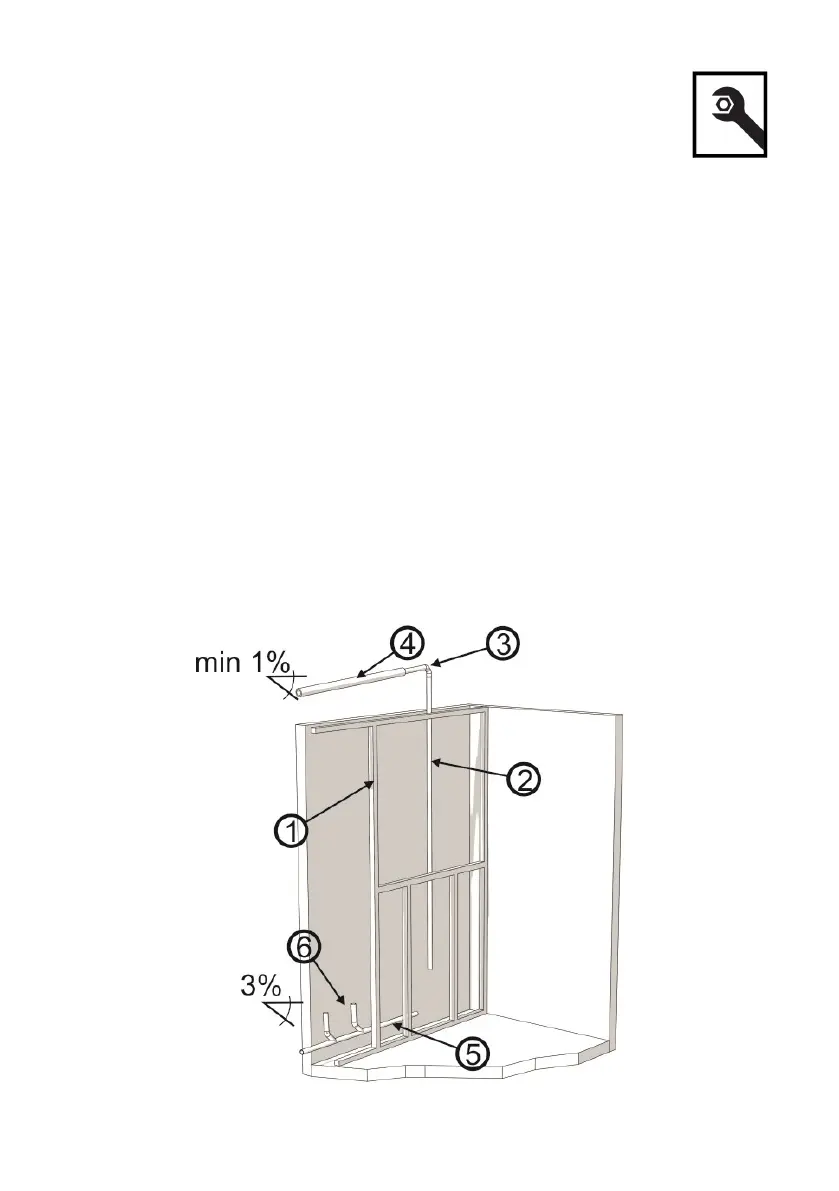

Then create a special frame (1) for the wall.
Prepare the discharge line (Ģ 40mm). It is suggested the use of rigid pipes in
PVC Ơ40mm. First make the ascending section (2), then through a softened
curve (3) realize the horizontal section, with a minimum slope of 1%. It is re-
commended in this section to provide for an increase in the section (4), until
reaching the ventilated sewer descending.
For the "All-in-One" versions, prepare the piping (5) for collecting the
waste water from additional utilities, connected to it (6). Ensure a slope of 3%.
NOTE for "All-in-One" versions:
In case of non-use of the additional inlet it is necessary to seal it with the sup-
plied 40cap. Tighten with a collar (clamp).
Prepare a tap with thread M 3/4" for connection to the domestic water supply
(cold water), which will be used for rinsing the toilet.
For only the "KB" version of the Stilo Plus, similarly arrange 2 taps with M1/2
thread" for the connection of the hot and cold water hoses of the integrated
bidet kit.
