10
• Indications and preliminary suggestions

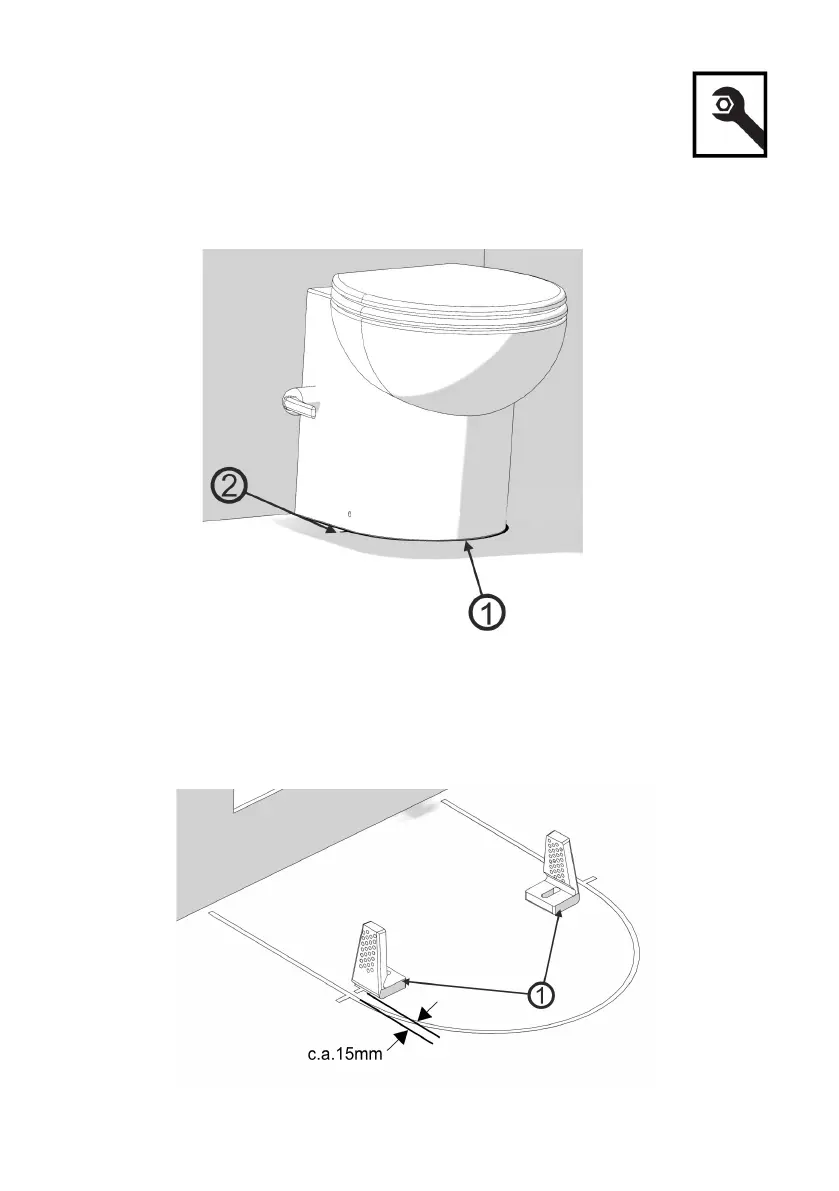

Place the toilet in the chosen point and draw with a pencil the profile of the
foot (1), also marking the position of the holes for fixing to the ground (2).
Move the toilet and, at the marks for the position of the hardware on the
ground, place the provided fixing brackets (1), taking care to leave enough
space for the thickness of the ceramic (at least 15mm).
Then fix the brackets to the ground with the dowels.
