11
• Toilet preparation

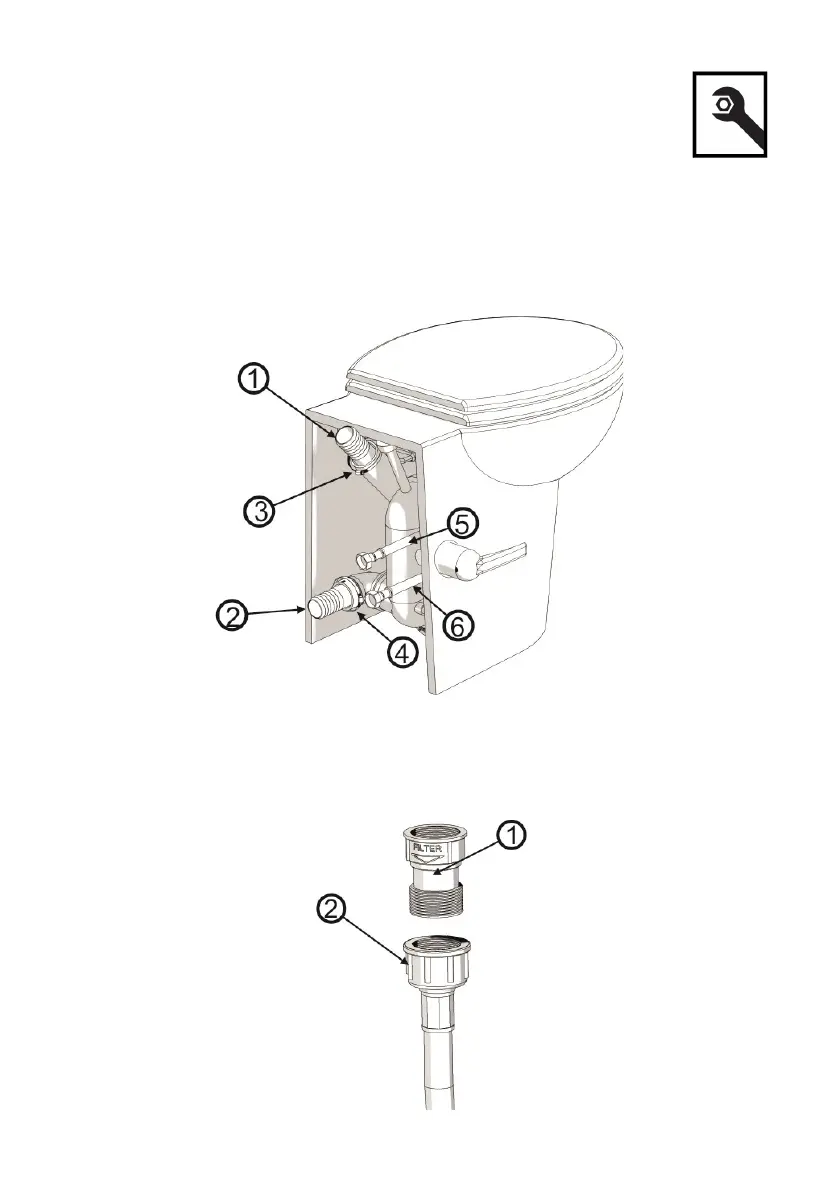

Fasten the supplied HOSE HOLDER 40 (1) to the toilet outlet fitting via the
supplied collar (clamp) 32-50 (3). For the "All-in-One" versions, similarly
attach the second hose adapter 40 provided (2) to the additional inlet fitting
via collar (clamp) 32-50 provided (4). Make sure there are gaskets for the
hot and cold water hoses (5/6) of the integrated bidet kit (KB version only).
Then fix the 3/4 water inlet filter provided (1) to the flexible water inlet
pipe of the toilet (2), respecting the direction indicated on the filter itself.
