*SLATS MAY NEED TO BE RECENTERED FOR PROPER OPENING SIZE

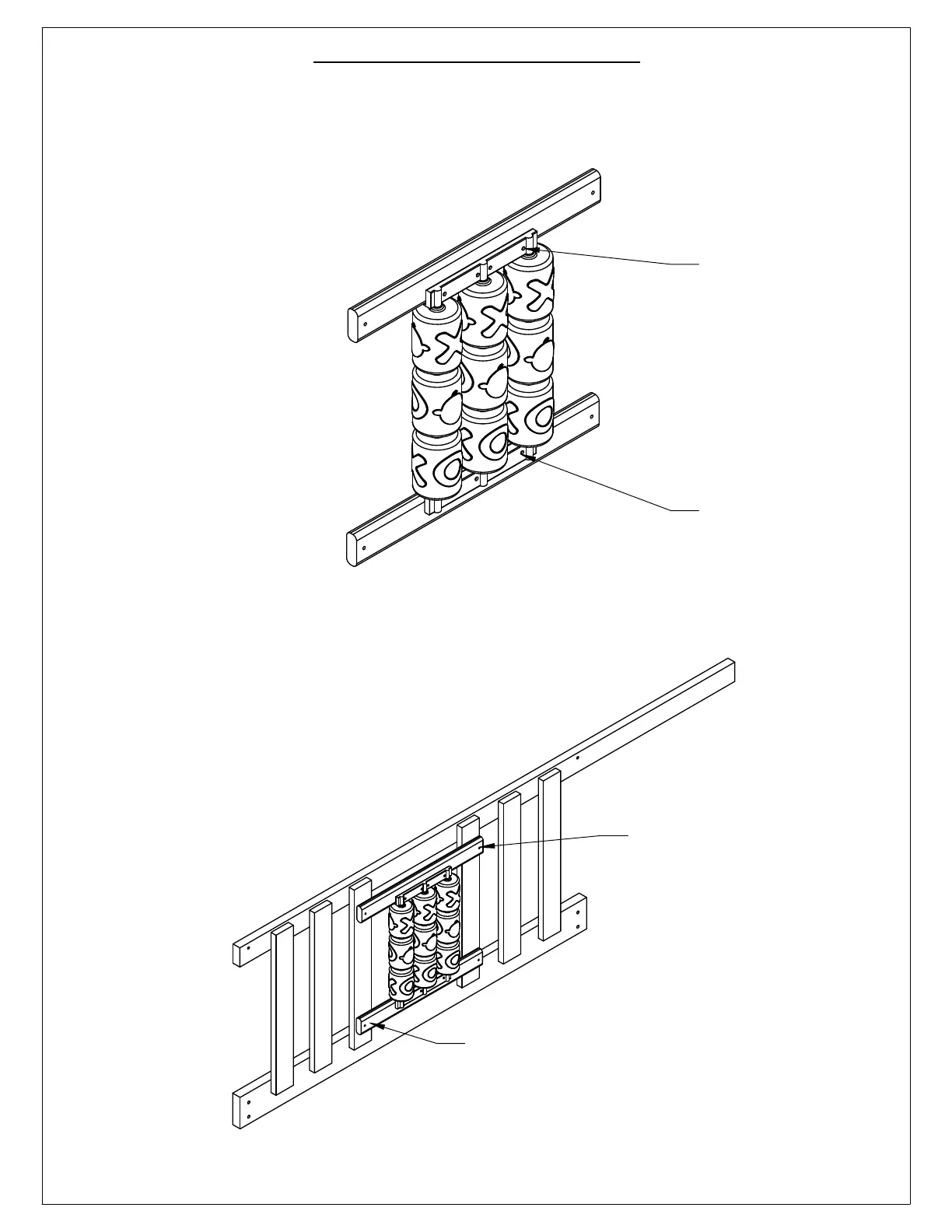

STEP 6: MOUNTING TO THE UNIT
*IF YOUR UNIT DOES NOT HAVE SLATS THIS SIZE YOU WILL NEED TO OBTAIN THE CORRECT SIZE BOARD AS STATED ABOVE
.
STEP 7: MOUNTING TO THE UNIT (CONTINUED)
MOUNT THE UNIT TO THE SLATS ON THE BACK OR SIDE WALL USING FOUR 1-1/2" WOOD SCREWS. OPENING SIZE
SHOULD BE 18-1/4"W" X 22-3/4"H.*
REMOVE THREE 5/4 X 2-3/4 X 28-1/2"* SLATS FROM THE BACK OR SIDE OF THE UNIT AND CUT
TWO OF THEM TO 23-3/4". CENTER THE MODULE ON THE BOARDS AND USE EIGHT 1"
SCREWS TO FASTEN THEM TOGETHER.
TIC TAC TOE (07-0010)
1-1/2" WOOD SCREWS
1-1/2" WOOD SCREWS
1" WOOD SCREWS
1" WOOD SCREWS
