LOG SET
• If you remove the log set for cleaning, refer to page 17, for placement instructions.
• Replace log set if broken or chipped (dime sized or larger).
CABINET
Use a vacuum cleaner or pressurized air to clean.
Use a soft cloth dampened with a mild soap and water mixture. Wipe the cabinet to remove dust.
NG Pilot Air Inlet Hole
LP Pilot Air Inlet Hole

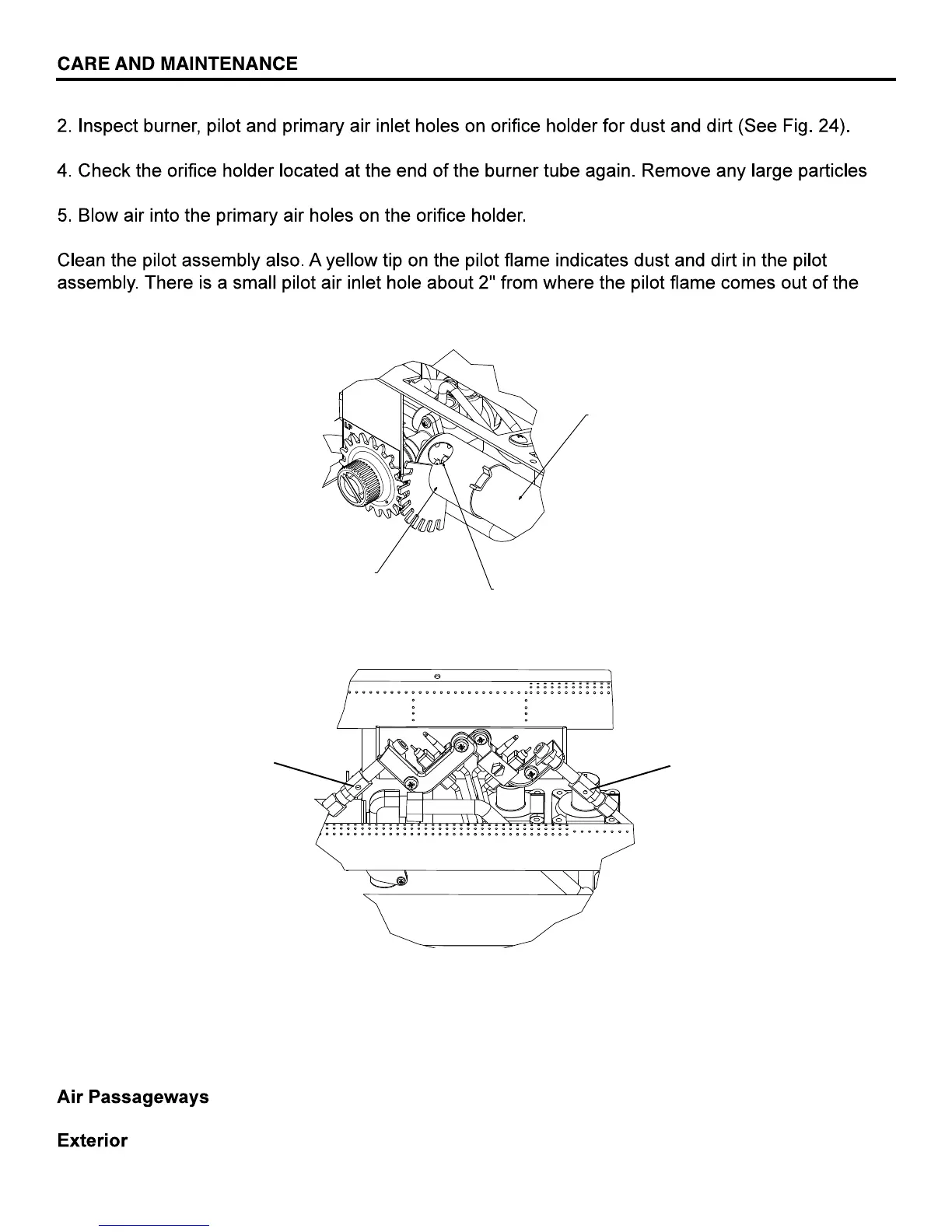

Fig. 24 - Primary Air Inlet Slot on Burner Tube
1. Shut off unit including pilot. Allow unit to cool for at least 30 minutes.
3. Blow air through the ports/slots and holes in the burner.
of dust, dirt, lint or pet hair with a soft cloth or vacuum cleaner nozzle.
6. In case any large clumps of dust have now been pushed into the burner repeat steps 3 and 4.
pilot assembly (see Figures 25). With the unit off, lightly blow air through the air inlet hole. You may
blow through a drinking straw if compressed air is not available.
Fig. 25 - Pilot Inlet Air Hole
Primary Air
Inlet Hole
Burner Tube
Shutter
