Section 2. Installing the PX-716A Internal ATAPI Drive
PX-716 Installation and Users Manual 35
CAUTION: The power connector on the cable and the receptacle on
the drive are keyed. Do not force the power connector into the drive,
or the drive and/or the computer may be damaged.

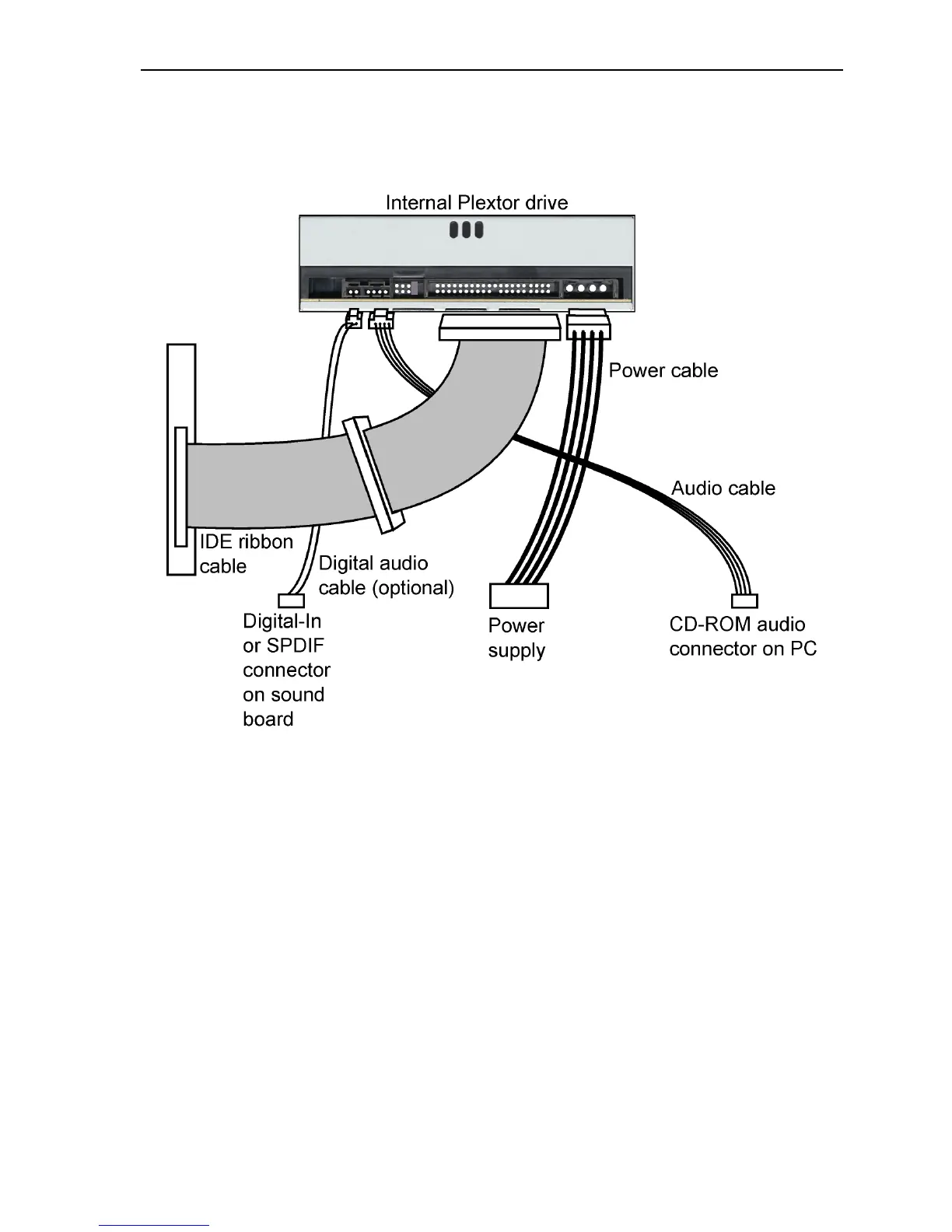

Figure 17: Cable connections for an internal IDE drive
10. Connect the analog audio cable if you want to use a sound board in
your system. This cable runs from the four-pin analog audio output
connector on the rear panel of your drive to the CD-ROM audio
connector on the PC or your sound board. See “Using Sound Boards
and Audio Cables” below for more information about audio cables.
11. Connect a digital audio cable if your sound board is equipped with
the Sony/Philips Digital Interface (SPDIF) or Digital-In, and you
wish to use the digital audio output from your PX-716A. This cable
runs from the digital audio output connector pins on the PX-716A
back panel to the sound board. (This cable is not supplied by
Plextor.)
