Plockmatic 306 - SR85 Height Adjustment Guide

(5)
T09149
2
Height adjustment:
1. Push the machines together.

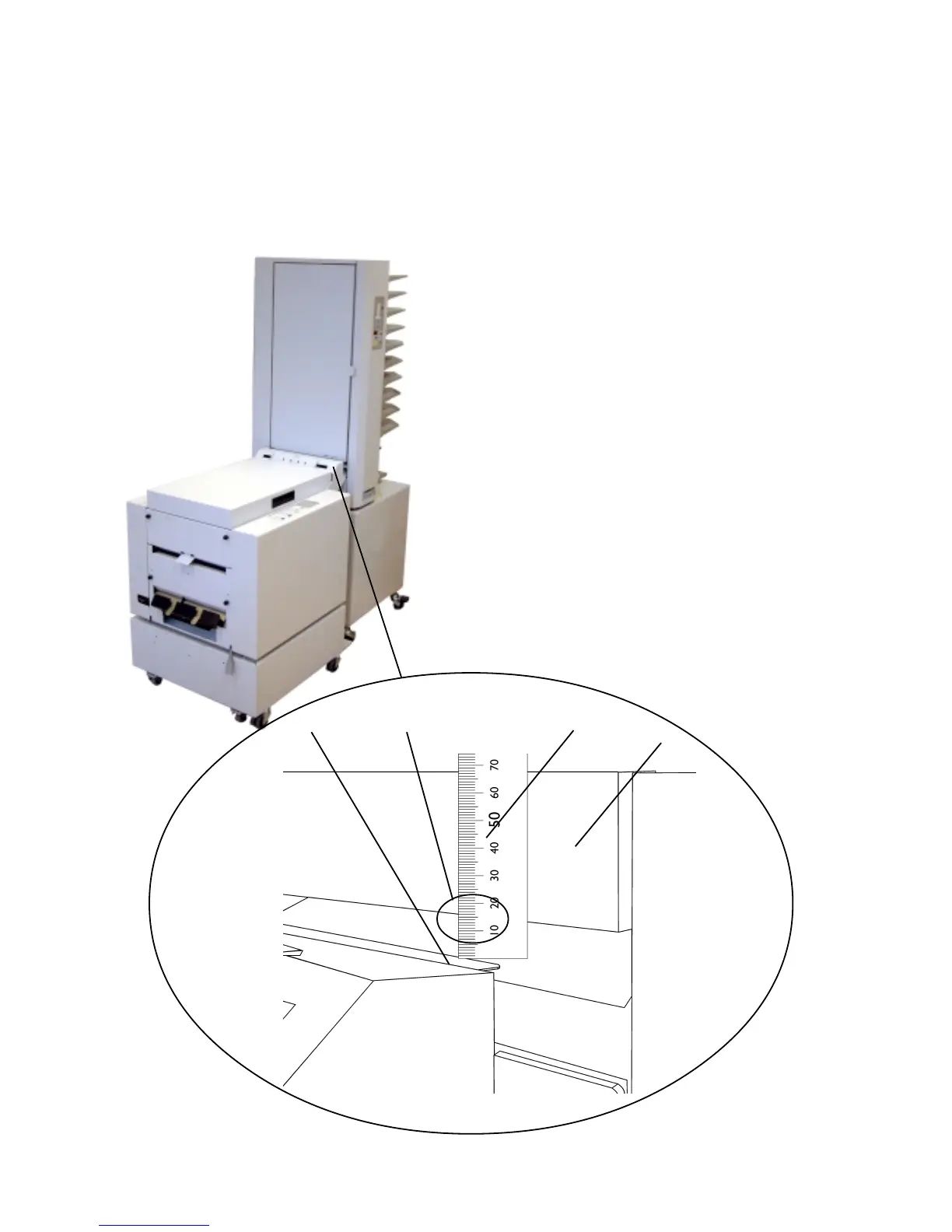

2. Place a scale (1) on the stainless plate (2) on the infeed unit at SR85. Adjust the
height to approximately 15 mm to the lower edge of the door of Model 306/310 by
adjusting the height on the castors of the Collator base.
Note: Do not adjust the height of the SR85.
Approx.15 mm
1
2
Door
