Plockmatic 306 - Attaching Labels to SR85 and 306;310

(5)
T09149
Attaching the labels:

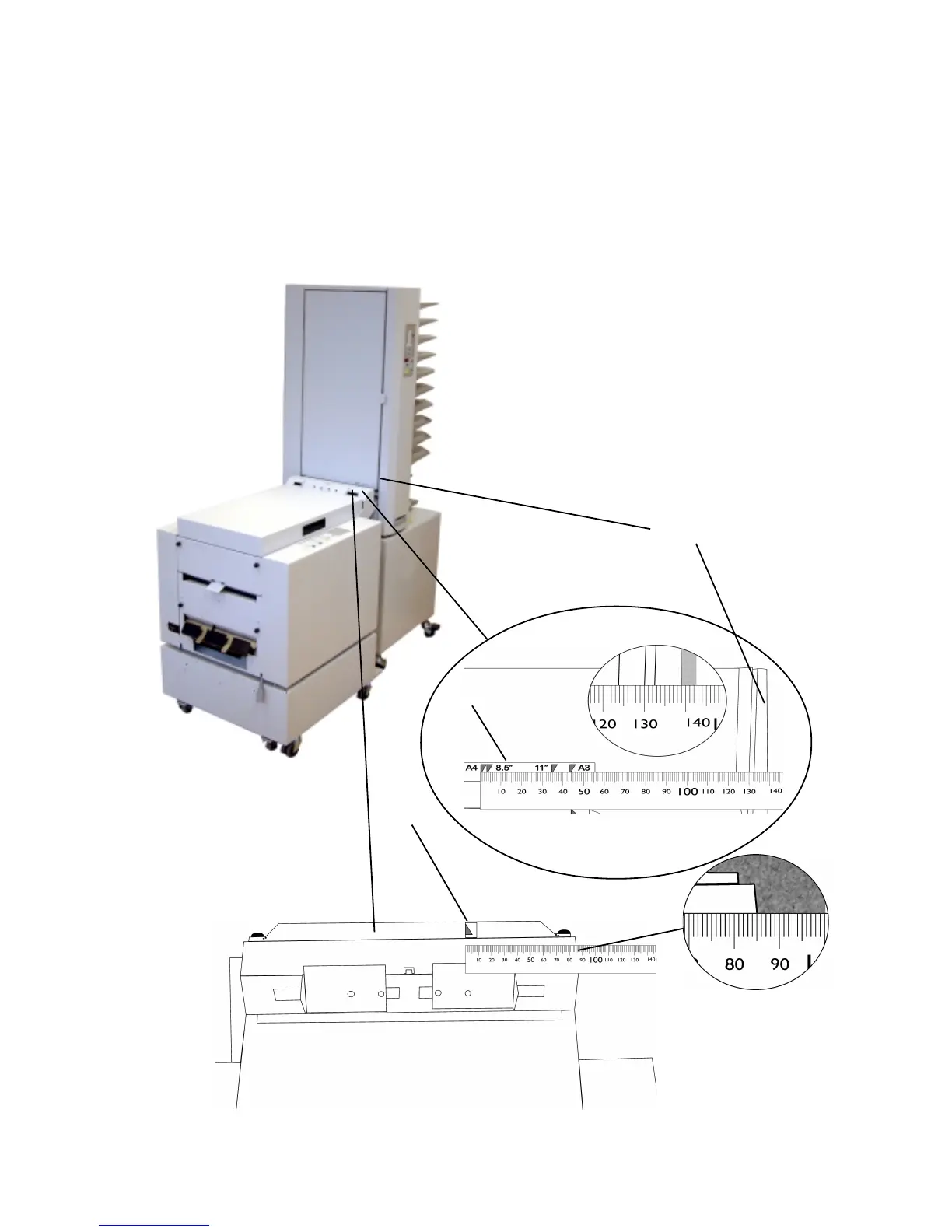

1. Clean the surface where the labels should be placed.
2. Use the inner edge of the main frame on Model 306/310 as reference point when
placing the labels.
3. Place the label (1) on the door 130 mm from the inner edge of the main frame and use
the green A4 mark as reference.
4. Place the small label (2) on the stainless plate of SR85 85 mm from the outer edge of
the infeed unit and use the green mark as reference.
1
2
3
Main frame
