Plum INT-S3 - Device Description and Usage; INT-S3 Application; INT-S3;N Application; INT-S3;N Specific Usage

2 / 2
INT-S3 is dedicated to power supply (V
OUT
=5.7V) device installed in Ex zone, and it can be also used as Ex barrier for RS485
communication channel and for Digital Outputs.
INT-S3/N is dedicated to power supply (V
OUT
=7.6V) NAMUR circuits of device installed in Ex zone, and it can be also used as
Ex barrier for RS485 communication channel and for Digital Outputs.
INT-S3/N can not be used as main power supply for devices like MacBAT 5 / MacREJ 5. For these devices it can be used only
as Ex barrier for RS485 communication channel and for Digital Outputs.
CONNECTION DIAGRAM
TECHNICAL SUPPORT
Technical Support Department
phone no.: +48 85 749 71 63
e-mail: support@plummac.com
Plum Sp. z o.o.
Ul. Wspólna 19, Ignatki
16-001 Kleosin
Poland
National Waste Database no.: 000009381

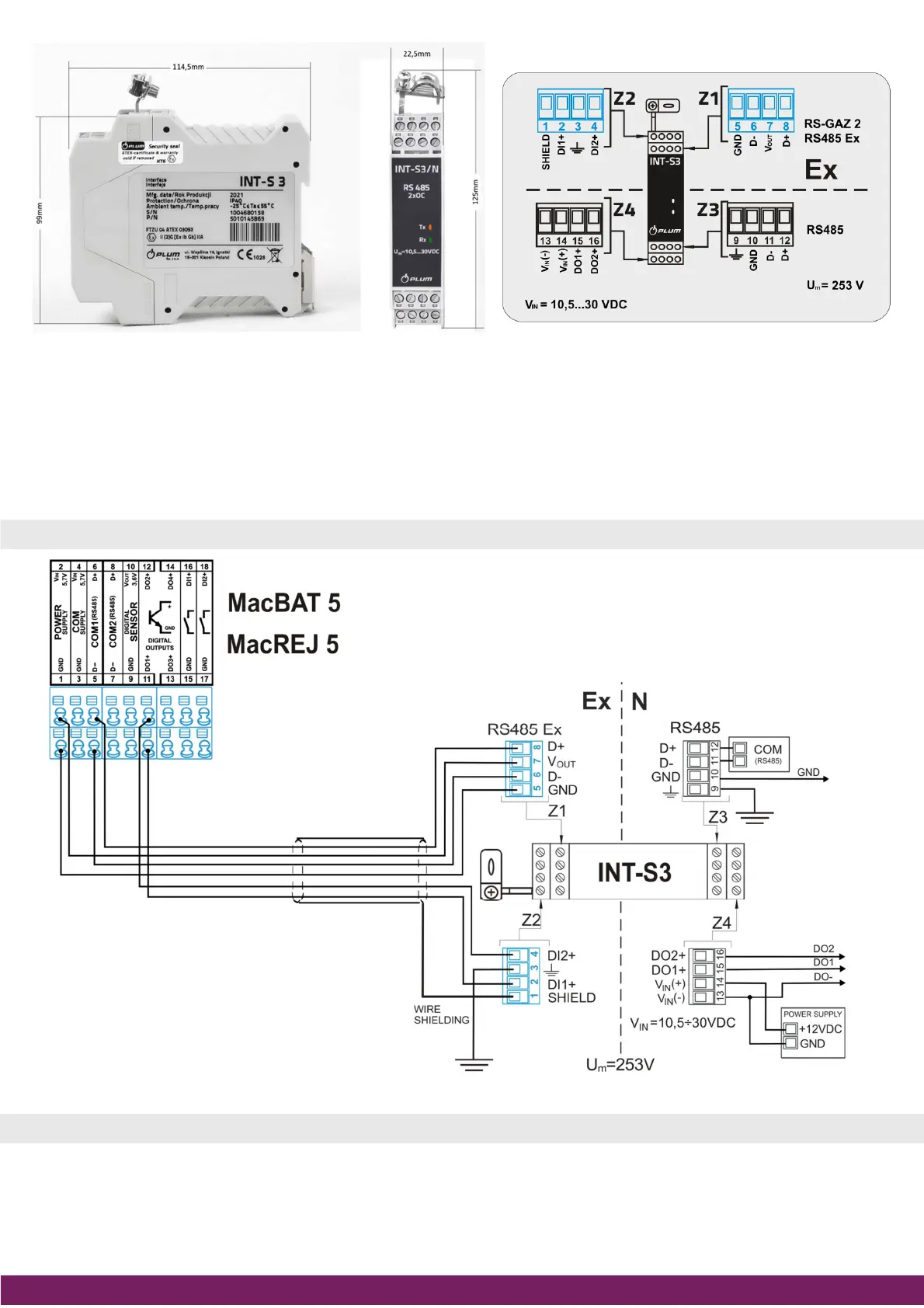

Figure 1: View and dimensions of interface.
Figure 2: Terminals description of interface.
Figure
3
:
Connection diagram
of INT
-
S3 with MacBAT 5 / MacREJ 5
.
