Volume logger MacR6
Installation Manual
2. Menu

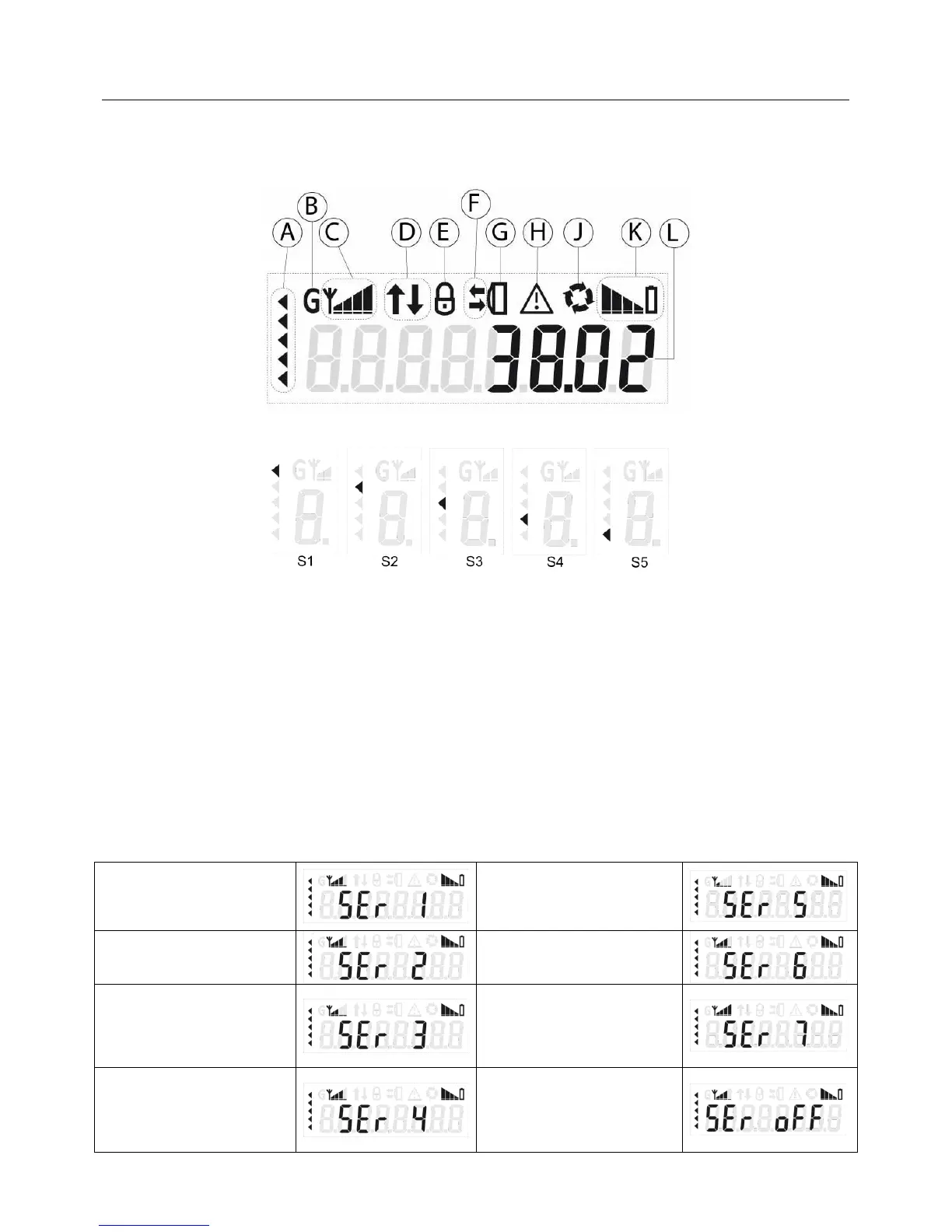

On the display of device are presented icons indicating operating status and cyclic, basic information (L):
- Status of counter; current date and time
Functions of indicator (A):
Where:
S1 – time indicator (actual/ previous billing month)
S2 – counter marker
S3 – increment marker
S4 – hourly peak value marker
S5 – physical quantity marker (volume/energy)
3. Service menu
Device have built-in Menu with service functions. It is enabled by tree quick touches of magnet to OPTI-
CAL INTERFACE windows (it is indicated by tree blinks of icon (G)). This activates first option in menu
marked as “SEr 1”. At this point indicator (A) will display all segments and start to dim out from up to
down. During that moment, when touched again with magnet, device will go to next position in menu
“SEr 2” etc. When stopped on selected menu – after elapsing of time indicated by bar (A) – options
available in this menu are going to be displayed
.
Presentation of pro-
grammed rate of pulses and
version of device software –
alternately.
Autotest procedure, required
during installation process –
allows to send data to serv-
er.
IP number, obtained after
logging to programmed APN
Starts procedure of dynamic
control of signal level for
around one minute.
ICCID number of installed
SIM card.
Entering this function will
force sending of registered
since the beginning of cur-
rent month
Battery replacement proce-
dure.
Starts of pressure measure-
ment – every 5 seconds for
around 1 minute (option
available only in devices
equipped with transducer)
