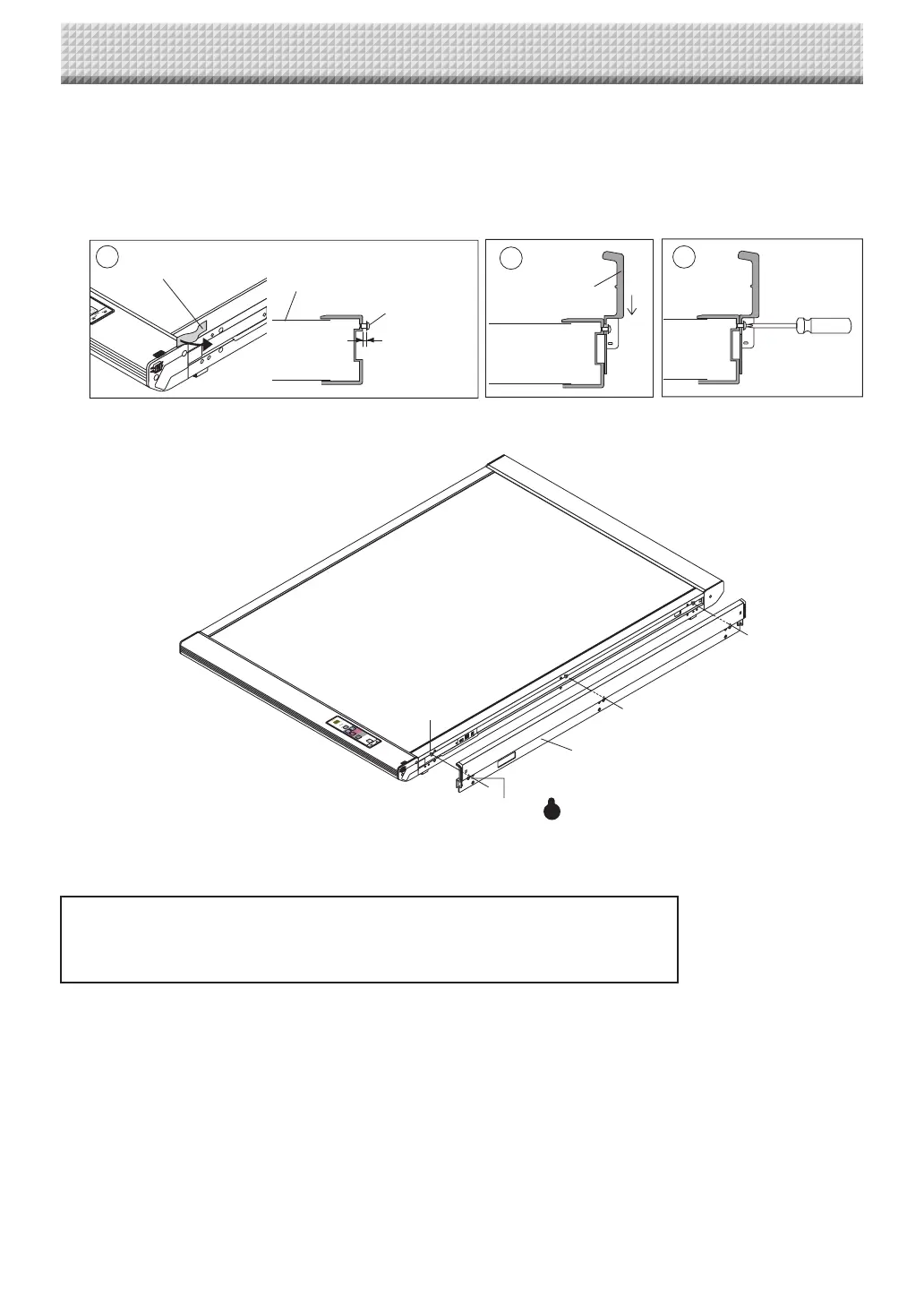

3. MOUNTING THE PEN TRAY
Mount the pen tray on the main unit.
Peel off the three pieces (four for the wide type) of temporary fixing tape from the bottom of the main unit.
Insert the heads of the screws in the pen tray's screw holes and slide downwards as such to slip the pen tray into place.
Tighten the screws.
The method of installation differs according to the installation type.
When installed on the stand: 4. Assembly of the Stand (next page)
When installed on a wall: 5. Wall Mounting (page E-8)
3
2
1
Main unit front
surface
(sheet surface)
M4 screw
Temporary fixing tape
Space of about
3 mm
Pen tray
M4 screw
Screw hole
Pen tray
