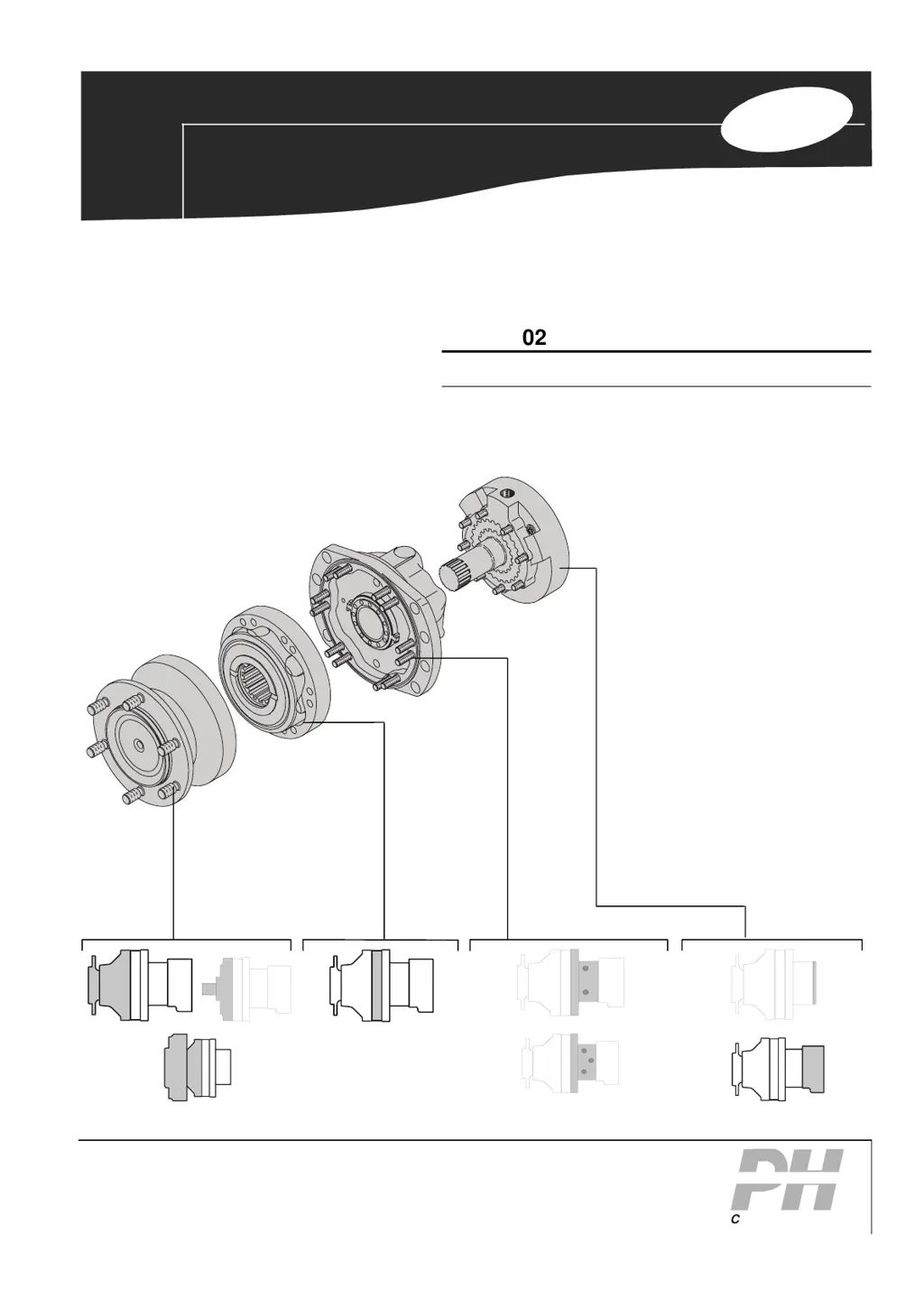

MS
Moteurs hy
drauliques
Hydraulic motors
Réparations
Repairs
Ref : 677777845L
DOC-
REPAIR-MS0
2-MS1
8-FR-EN
Rev : 22/03/2005
POCLAIN HYDRAULICS Industrie
B.P.
106
60411 VERBE
RIE CEDE
X - FRANCE
Tel.: 33 3 44 40 77 77
Fax: 33 3 44 40 77 99
www.pocla
in-h
ydrau
lics.com
POCLAIN HYD
RAULICS
Certif
ié I
SO 900
1
02
03
05
08
11
18
MS
-
MSE
Dépannage
Trouble shooting
Interv
entions
Maintenance
Réparations
Repairs
Pièces de rechange
Spare parts
5767
0549
5766
0550
0545
5763
5764
5765
0547
2
Table of Contents
Default Chapter
3
Table of Contents
3
Securite Et Qualite
4
Avant Toute Intervention
4
Durant L'intervention
4
Apres Intervention
4
Safety and Quality
4
Before Servicing
4
During Servicing
4
After Servicing
4
Identification du Composant
5
Identification of the Component
5
Depannage
6
Trouble Shooting
7
Interventions
8
Remplacement du Moteur
8
Maintenance
8
Replacing the Motor
8
Defreinage Mecanique
9
Mechanical Brake Release
9
Desactivation du Freinage Mecanique des Moteurs Apaliers Dyna
10
Mechanical Brake Deactivation of the Motors with Dyna+ Bearing Support
10
Controle de L ' Efficacite de Frein de Parking
11
Checking the Parking Brake Efficiency
11
Reparations
12
Reparation du Frein
12
Repairs
12
Repair of the Brake
12
Reparation du Palier (070)
29
Bearing Support (070) Repair
29
Remplacement du Palier Dyna
46
Replacement of the Dyna + Bearing Support
46
Remplacement des Machoires de Frein
52
Replacing the Brake Shoes
52
Remplacement de la Came (026)
59
Replacement of the Cam (026)
59
Remplacement du Bloc Cylindre Equipe (010)
60
Replacement of the Cylinders Block Assembly (010)60
60
Remplacement de la Glace (047)
61
Replacement of the Valving (047)
61
Remplacement du Joint (045) de la Plaque de Fermeture
64
Replacement of the End Cover O- Ring (045)
64
Remplacement du Capteur (Option)
67
Replacing the Sensor ( Optional )
67
Recapitulatif Outillage
69
Outillage Standard
69
Tooling Inventory
69
Commercial Tools
69
Outillage Specifique
70
Specific Tools
70
Resume des Couples de Serrage
73
Tightening Torque Summary
73
Tableau de Valeur Pour Reparation Palier
75
Moteur Palier
75
Moteur Roue
75
Table of Values to Repair the Bearing Support
75
Shaft Motor
75
Wheel Motor
75
Moteur Roue Avec Frein Tambour
76
Wheel Motor with Drum Brake
76
Liste des Pieces
77
Spare Parts List
77
Moteurs Avec Palier Dyna
79
Motor with Dyna+ Bearing Support
79
Moteurs a 1 Cylindree
80
Single Displacement Motors
80
Moteurs a 2 Cylindrees
82
Dual Displacement Motors
82
