44
FEATURES AND CONTROLS
Instrument Cluster

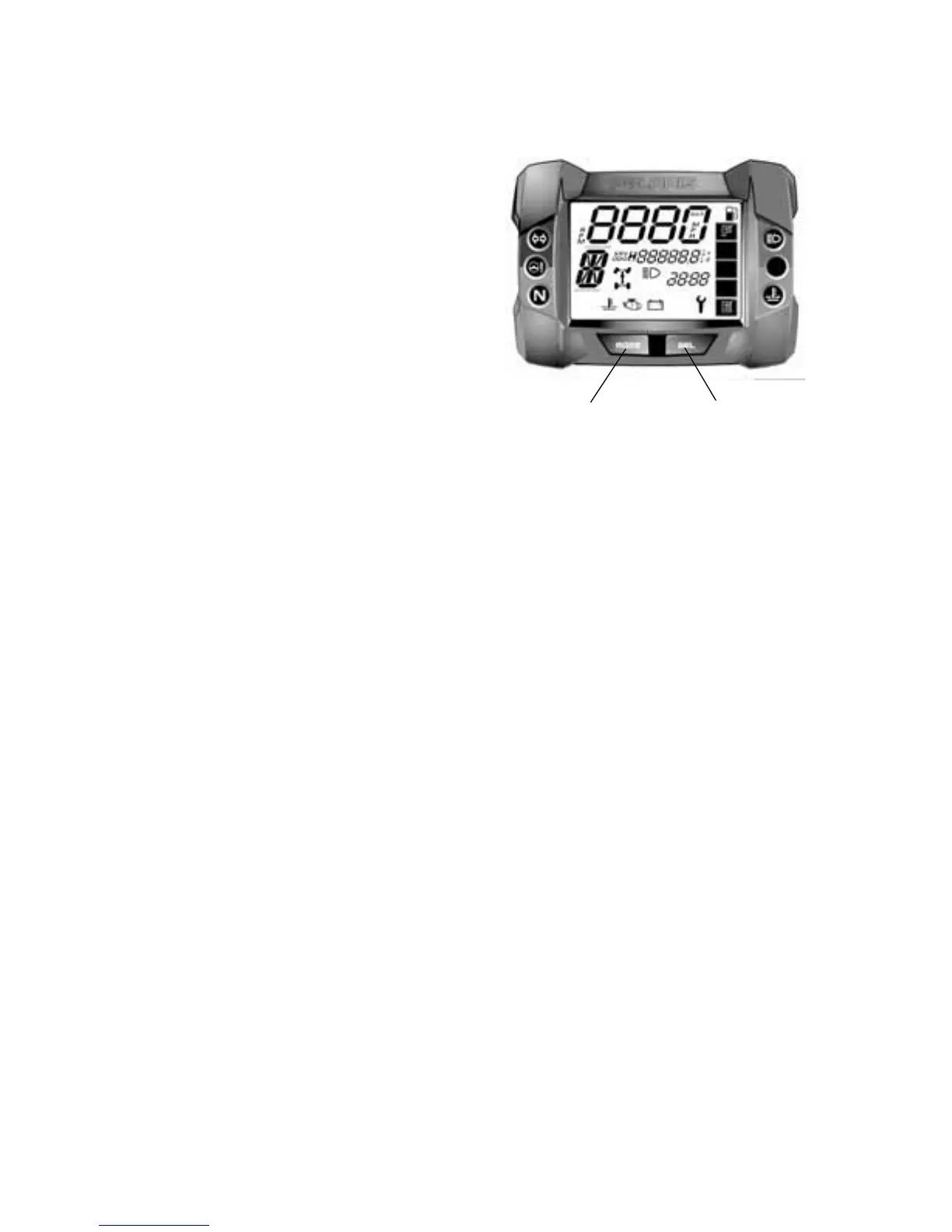

Multi-Function Display (MFD) Gauge (EPS Models)
Use the MODE button to toggle
through the speed display options.
Use the SELECT button (SEL) to
toggle through the information area
options.
MODE and SELECT button opera-
tion is locked out at speeds above
approximately 15 MPH (25 km/h).
Tip: The reverse override button also
acts as a MODE button when held
down for approximately one half
second. The reverse override but-
ton also acts as the SELECT but-
ton when pressed and released
quickly. The transmission cannot be in reverse when using the override but-
ton as a MODE or SELECT button. This feature does not contain a vehicle
speed lockout function and can be used at any operating speed.
Speed Display
Use the MODE button to toggle through the speed display options.
Ground speed is displayed in either miles per hour (MPH) or kilometers
per hour (km/h).
Engine speed is displayed in revolutions per minute (RPM).
