Polaris PB4-60 Installation Instructions

Pump Installation Kit (part #P17)
This kit is also available separately. It contains
four Softube quick connects (part #P133) and
one six-foot section of flexible reinforced hose
(part #P19).
Universal Wall Fitting Restrictor Kit
(part #10-108-00)
The UWF restrictor kit is now included with all
new Polaris cleaners that operate with a booster
pump. These new restrictors are designed to
work in combination with the pressure relief
valve. Together they will release excess water
pressure to the cleaner so it can operate at its
optimum level of efficiency.
If the Polaris cleaner does not have UWF
pressure restrictors, the UWF restrictor kit (part
#10-108-00) is available separately through
your participating Polaris dealer. To determine
if pressure restriction is necessary, refer to
the owner's manual for the cleaner or contact
the Customer Service Department at
1-800-VAC-SWEEP.

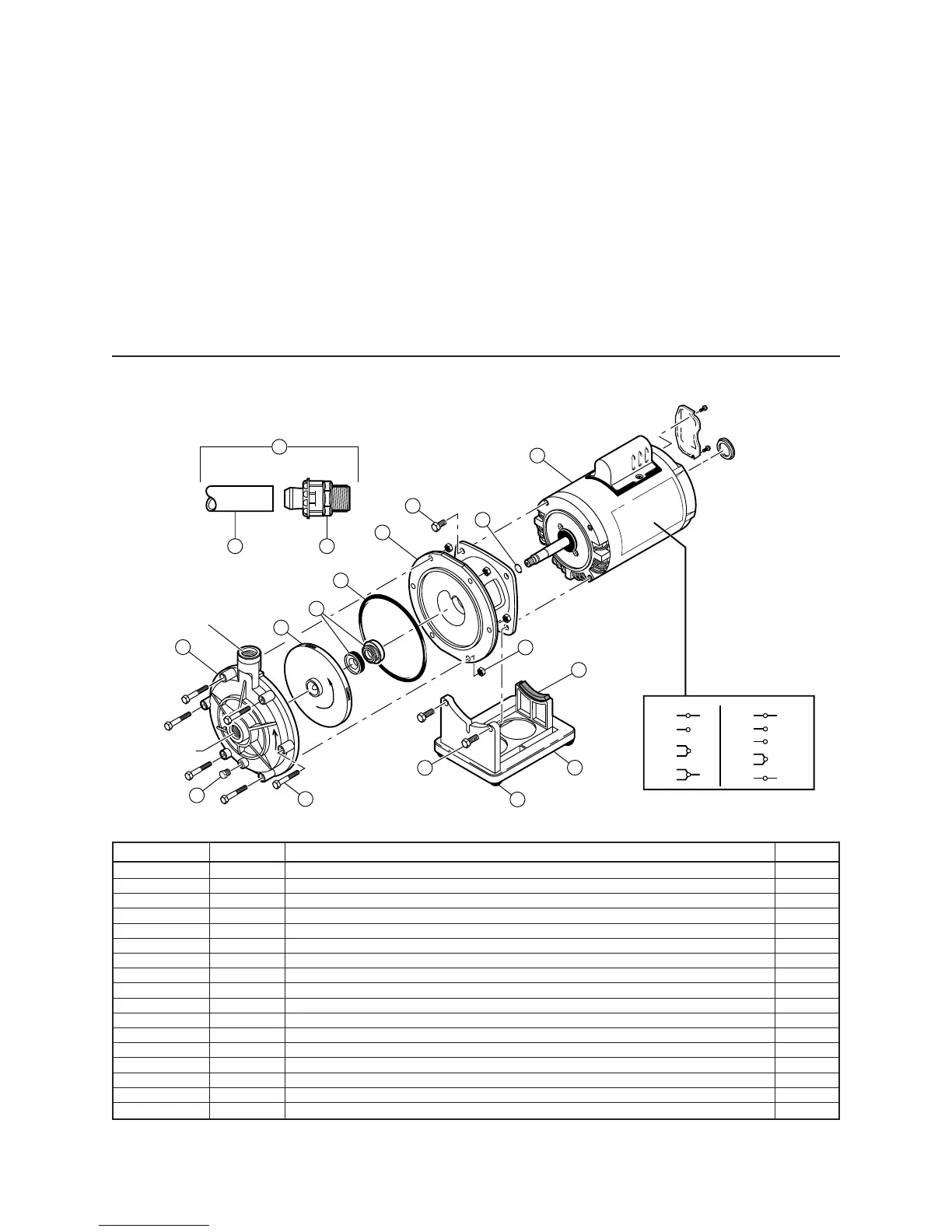

Exploded Parts Diagram
R
O
T
A
T
I
O
N
PUMP
SUPPLY
PUMP
DISCHARGE
13
1
3
5
6
2
8
9
10
12
11
9
14
4
7
YEL/BLK
BLACK
ORANGE
BROWN
WHITE
YELLOW
LOW VOLTAGE
LINE
LINE
1
4
5
6
YEL/BLK
BROWN
BLACK
ORANGE
WHITE
HIGH VOLTAGE
LINE
1
3
4
5
YELLOW LINE
6
NON
REVERSIBLE
16
17
15
No. Part # Description Qty
1P5Volute (Includes drain plug) 1
2 P15 Impeller 1
3 P55 Seal, Stainless Steel Cup/Spring 1
4 P95 O-ring, Bracket 1
5 P10 Bracket 1
6 P35 Bolt, Stainless, Bracket to Motor 2
7 P40 O-ring for Shaft 1
8 P61 Motor, 3/4 HP, Threaded Shaft, 60 Hz 1
9 P25 Bolt/Nut, Stainless for Volute to Bracket 6
10 P80 Rubber Strip, Motor/Bracket 1
11 P70 Pump Stand with Feet, Strip 1
12 P75 Rubber Feet 4
13 P65 Bolt, Stainless, Stand to Bracket and Motor 2
14 P20 1/8" NPTM Plug, Plastic 1
15 P17 Installation Kit with Quick Connects and 6 Foot Hose 1
16 P19 Pump Hose, 6 Foot, Flexible Reinforced 1
17 P133 Softube
™
Quick Connect 4
