LED LIGHT ASSEMBLIES
LED lights are not serviceable. If one of the LED lamps fails to illuminate, the
entire light assembly must be replaced.

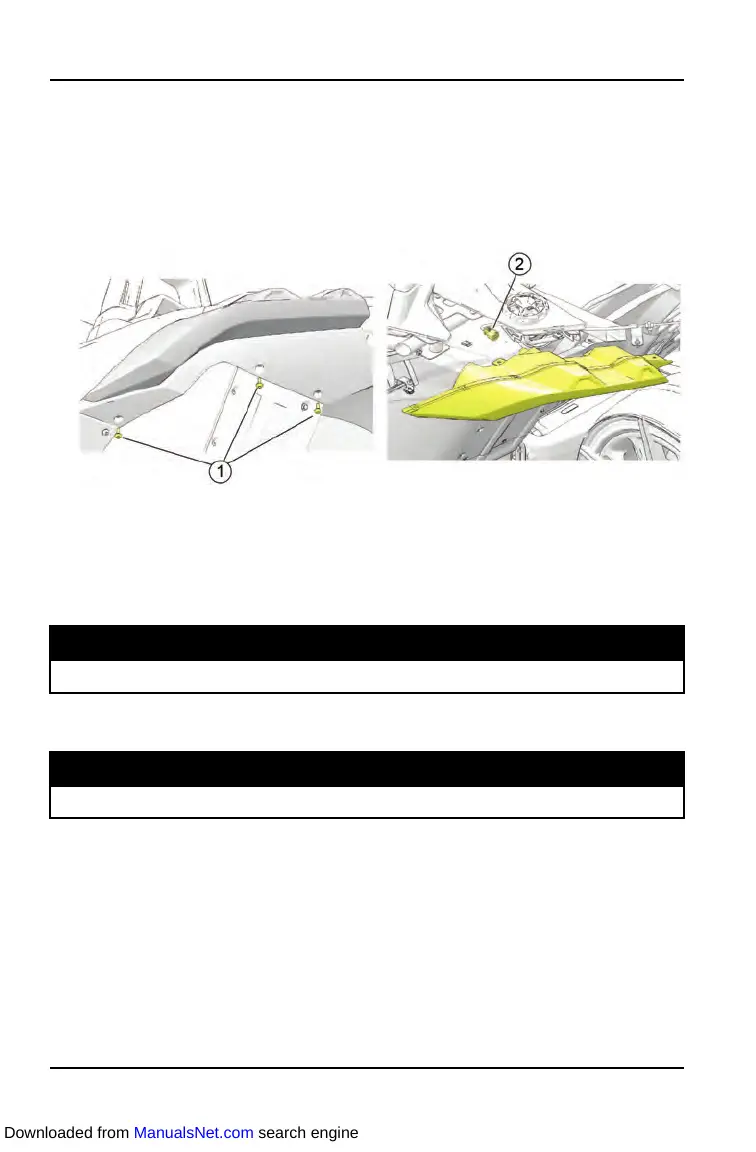

1. Remove the rear body panel to access the light assembly.
2. Remove the screws
q
securing the light assembly to the vehicle (taillight
assembly shown).
3. Unplug the electrical connector
w
from the light assembly.
4. Remove the light assembly.
5. Install the electrical connector to the replacement light assembly.
6. Reinstall the light assembly. Tighten the screws.
TORQUE
3 ft-lbs (4 Nm)
7. Reinstall the rear body panel. Tighten the screws.
TORQUE
5.4 ft-lbs (7 Nm)
HEADLAMP AIM INSPECTION CONDITIONS
The following headlamp aim inspections and adjustments will be accurate only
when tire pressures and suspensions are at factory-recommended settings.
Refer to safety labels on the vehicle or to the specifications section beginning on
page 121. The vehicle must also be unladen (without fuel, rider weight or cargo
weight).
