CENTER HEADLAMP AIM ADJUSTMENT (USA)
1. Verify that headlamp aim inspection conditions are met.

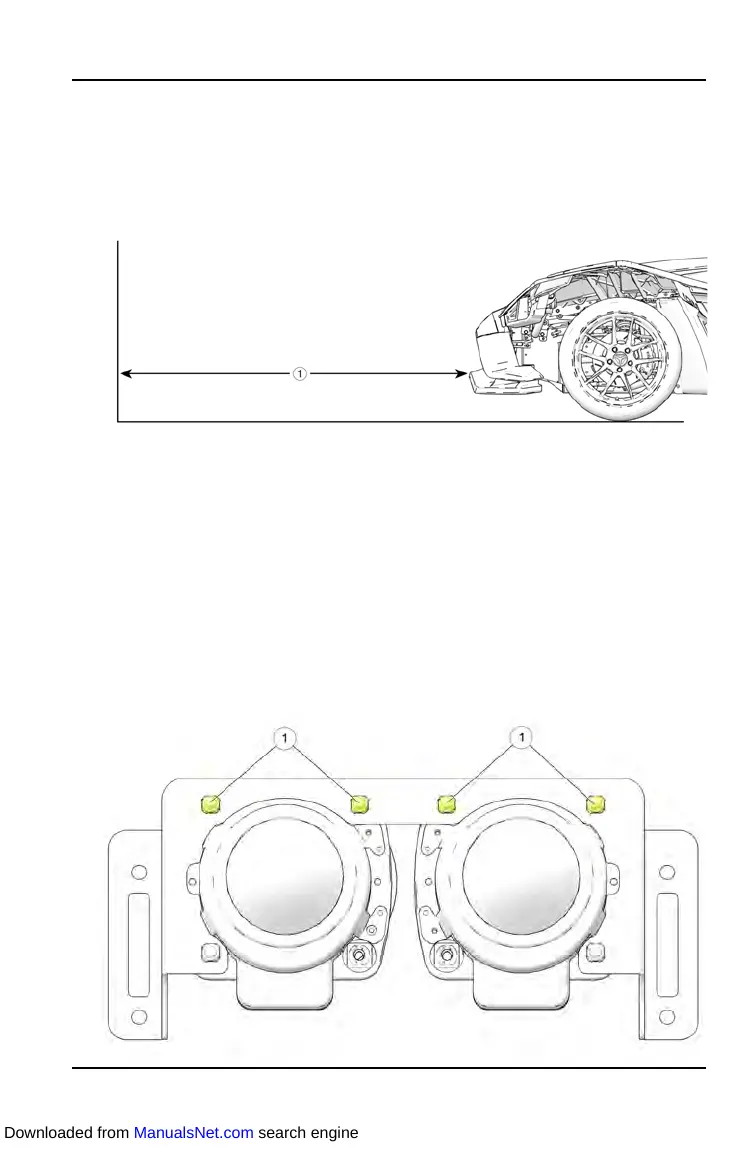

2. Position the vehicle on a level surface with the nose approximately 25 ft. (7.6
m) from a wall
q
.
3. Move the ignition switch to the ON position to turn the lights on. Place the
headlamps on low beam.
4. Observe the headlight beam display on the wall. The beam displays at two
levels, higher at the right side and lower at the left side.
5. Measure from the floor to the lower beam display at the left side as
illustrated. When the beam is properly adjusted, this measurement should be
in the following range:
• 19-20.75” (48-53 cm) for base model
• 20-21.75” (51-55 cm) for SL model
6.
To adjust a headlight beam, open the hood and turn the two upper headlamp
adjustment screws
q
simultaneously and equally.
105
MAINTENANCE
