• Clockwise adjustment lowers the beam
• Counter-clockwise adjustment raises the beam
AUXILIARY HEADLAMP AIM ADJUSTMENT (USA)
1. Verify that headlamp aim inspection conditions are met. See page 104.

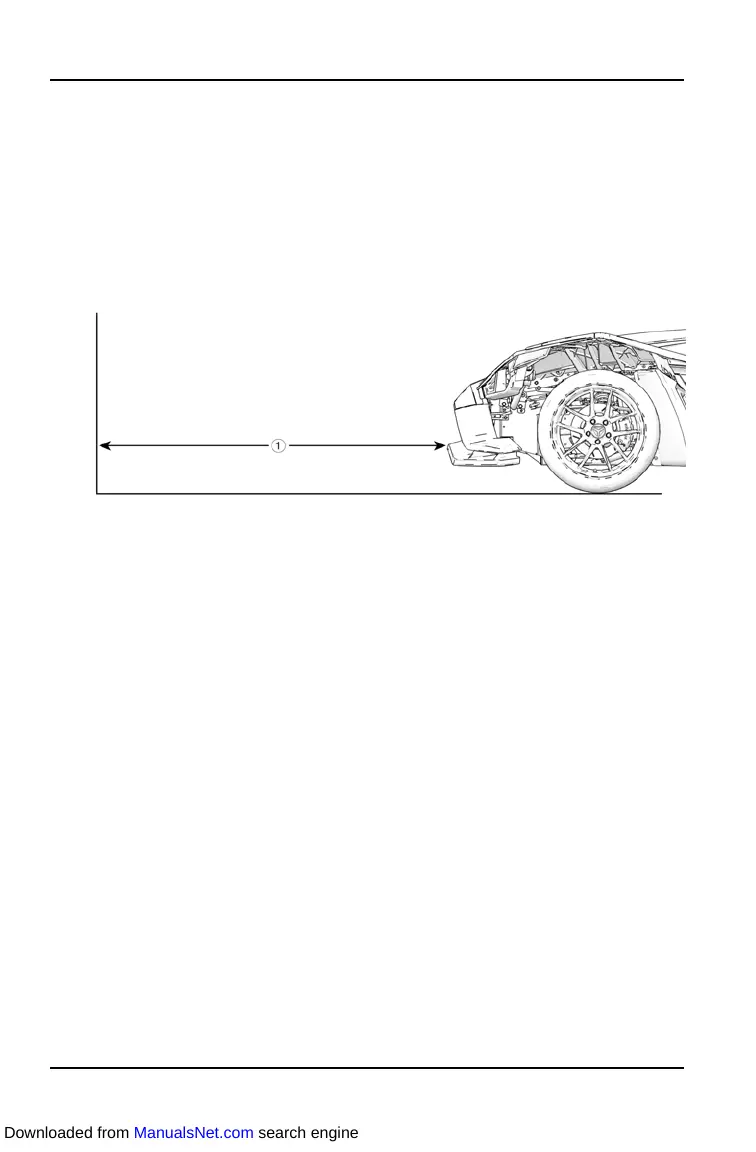

2. Position the vehicle on a level surface with the nose 5 ft. (1.5 m) from a wall
q
.
3. Move the ignition switch to the ON position to turn the lights on.
4. Observe the auxiliary headlight beam display on the wall. The lower edge of
the beam displays with a multi-colored halo.
5. Measure from the floor to the bottom edge of the halo’s green band as
illustrated. When the beam is properly adjusted, this measurement should be
in the following range:
106
MAINTENANCE
