• 3.75-5.75” (9.5-14.6 cm) for base model
• 4.75-6.75” (12-17.1 cm) for SL model

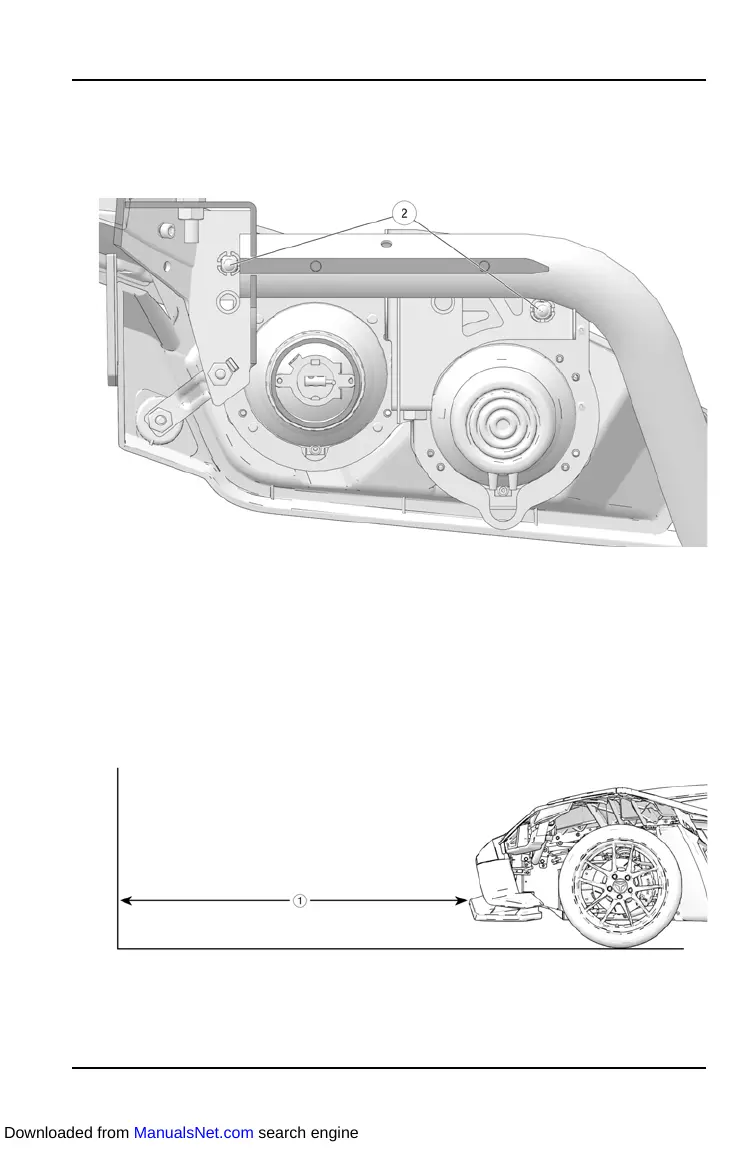

6. To adjust a headlight beam, open the hood and turn the two headlamp
adjustment screws
w
simultaneously and equally.
• Clockwise adjustment raises the beam
• Counter-clockwise adjustment lowers the beam
HEADLAMP AIM ADJUSTMENT (CANADA)
1. Verify that headlamp aim inspection conditions are met. See page 104.
2. Position the vehicle on a level surface with the nose approximately 25 ft. (7.6
m) from a wall
q
.
3. Move the ignition switch to the ON position to turn the lights on. Place the
headlamps on low beam.
107
MAINTENANCE
