4. Observe the headlight beam display on the wall. The beam displays at two
levels, higher at the right side and lower at the left side.
5. Measure from the floor to the lower beam display at the left side as
illustrated. When the beam is properly adjusted, this measurement should be
in the following range:
• 20-21.75” (51-55 cm) for base model
• 21-22.75” (53.3-57.8 cm) for SL model

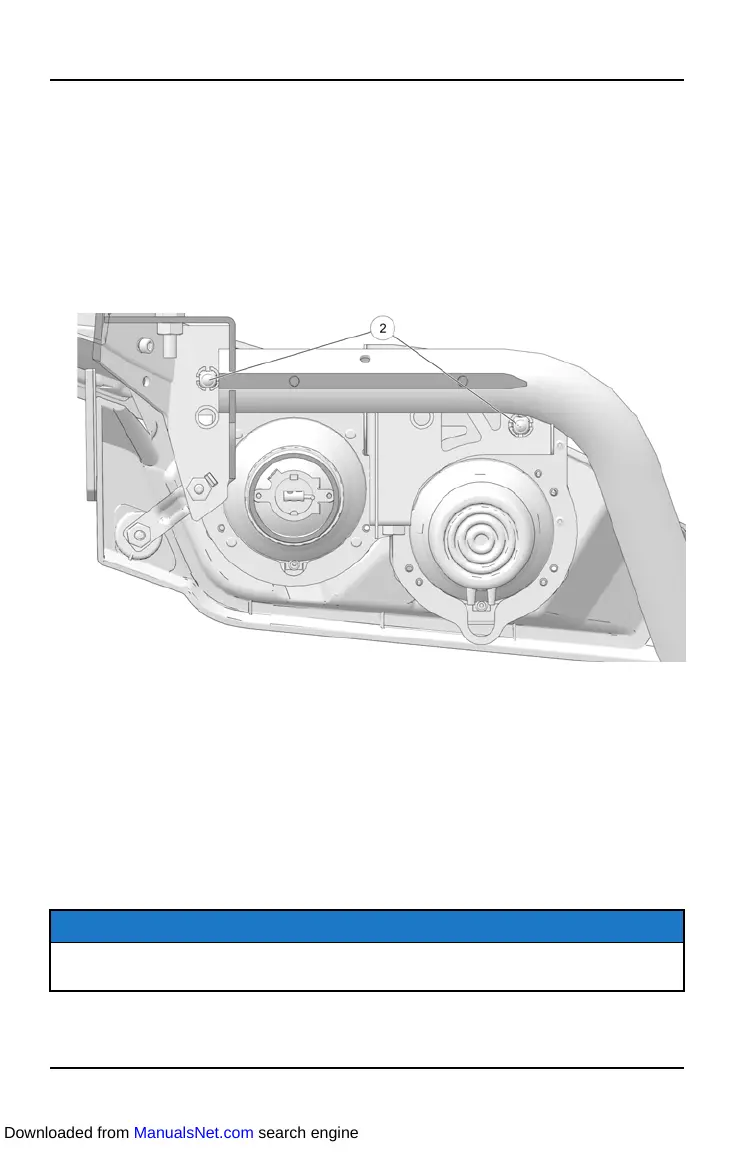

6. To adjust a headlight beam, open the hood and turn the two upper headlamp
screws
w
simultaneously and equally.
• Clockwise adjustment raises the beam
• Counter-clockwise adjustment lowers the beam
FUSE REPLACEMENT
The fuse box
q
is located under the hood near the brake fluid reservoir. The
three main system fuses are located in the battery compartment.
1. Open the hood.
2. Squeeze the fuse box cover tabs
w
inward and remove the cover.
3. Use the fuse puller provided in the tool kit to remove the spent fuse.
NOTICE
Always use the recommended fuse to prevent electrical system damage. Refer
to the label on the fuse box cover.
