6
6.47
9924864 - 2012-2014 SPORTSMAN 800 / 6X6
© Copyright 2013 Polaris Sales Inc.
6. Install left hand nut (C) and spacer onto puller rod
and tighten by hand. Turn puller barrel for further
tension if needed.
7. Turn clutch sheave counterclockwise until bushing is
removed and sheave comes free.
8. Remove nut (C) (left hand thread) from puller rod
and set aside.
9. Remove adapters from puller.
10. Remove bushing and removal tool from adapters.
Discard bushing.

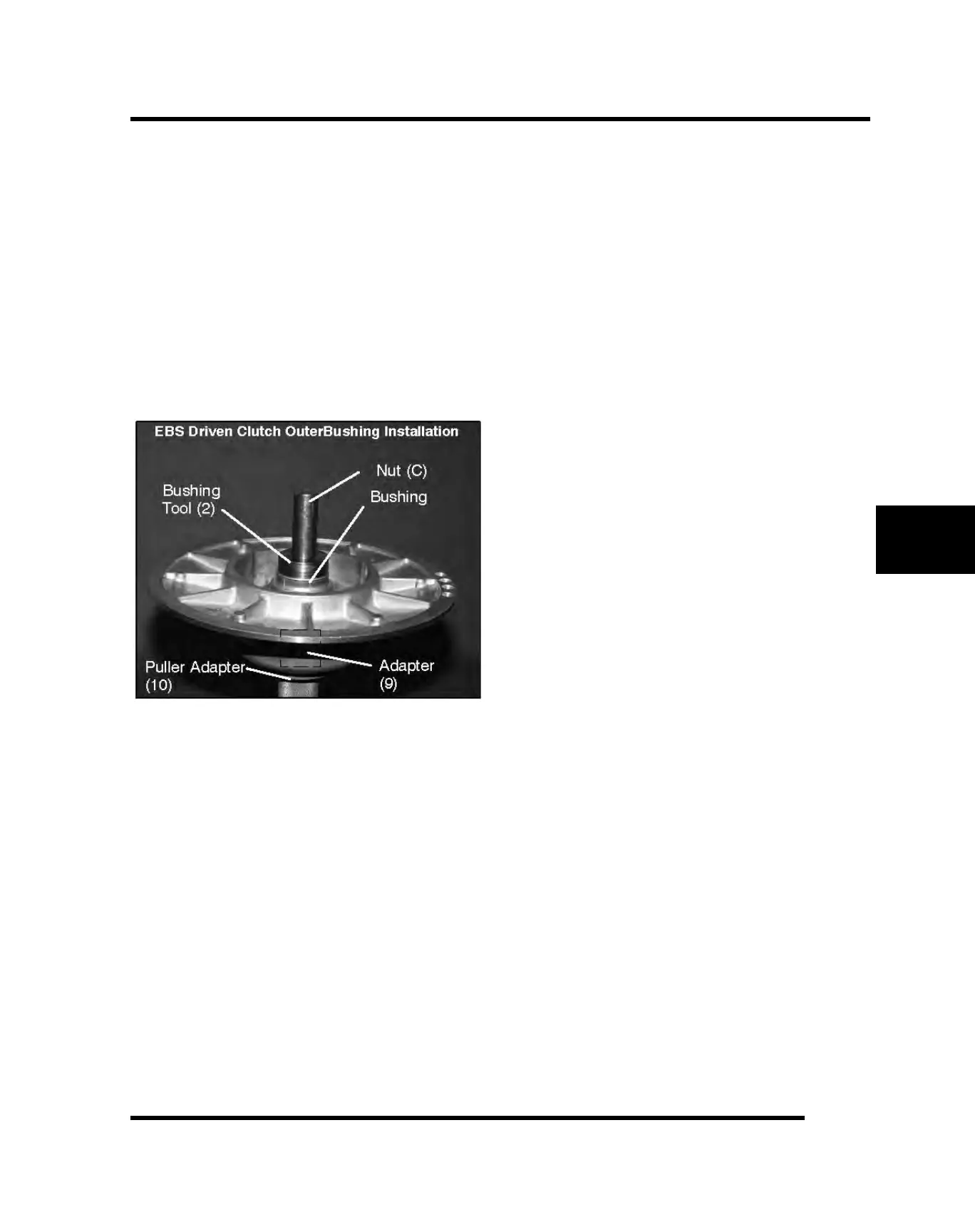

Clutch Bushing Installation
11. Install puller adapter (Item 10) onto puller.
12. Install adapter (Item 9) onto puller.
13. Apply Loctite 648 evenly to bushing bore inside
moveable sheave.
14. Install sheave face down on puller.
15. Install new bushing on installation tool (Item 2) and
install assembly into sheave.
16. Install left hand thread nut (C) onto puller rod and
hand tighten against installation tool.
17. Turn clutch sheave counterclockwise, making sure
bushing is drawn straight into bore. Continue until
bushing is seated.
18. Remove nut (C) from puller rod and set aside.
19. Remove installation tool and clutch sheave from
puller.
CLUTCHING
