9924864 - 2012-2014 SPORTSMAN 800 / 6X6

5. Place the piston in the piston cavity, aligning the pins

with the pin bosses. Using the casting and piston

marks as a guide as shown will aid pin alignment.

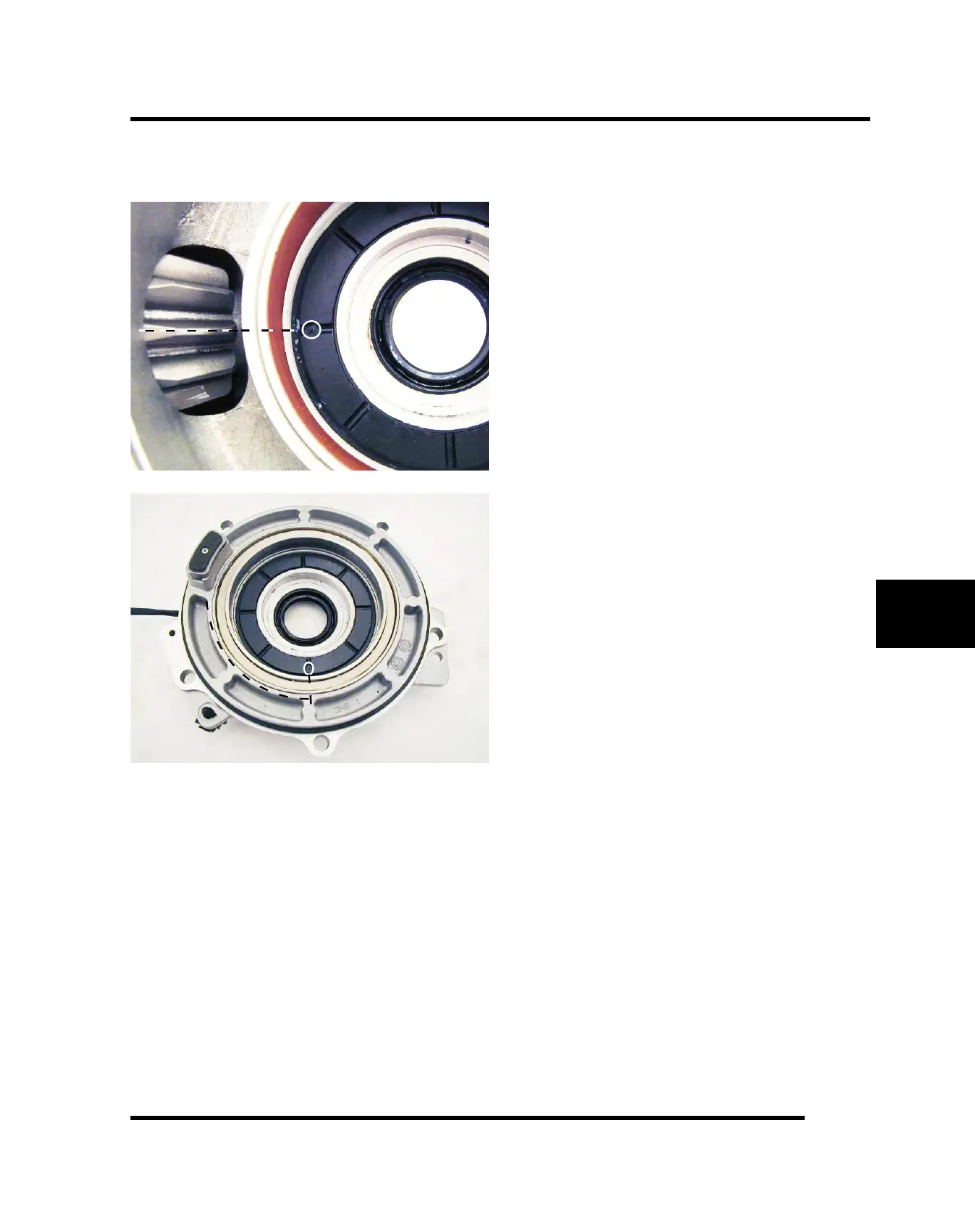

6. Place ADC Piston Tool PA-48542 on top of the piston

and verify alignment of the sight hole (circled) and

piston mark with the casting marks. Support the case

and press the piston down evenly. The piston is fully

seated and located in the pin bosses when the piston

surface is just below the cavity edge.
