6.13
Drive and Brake Systems
6
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

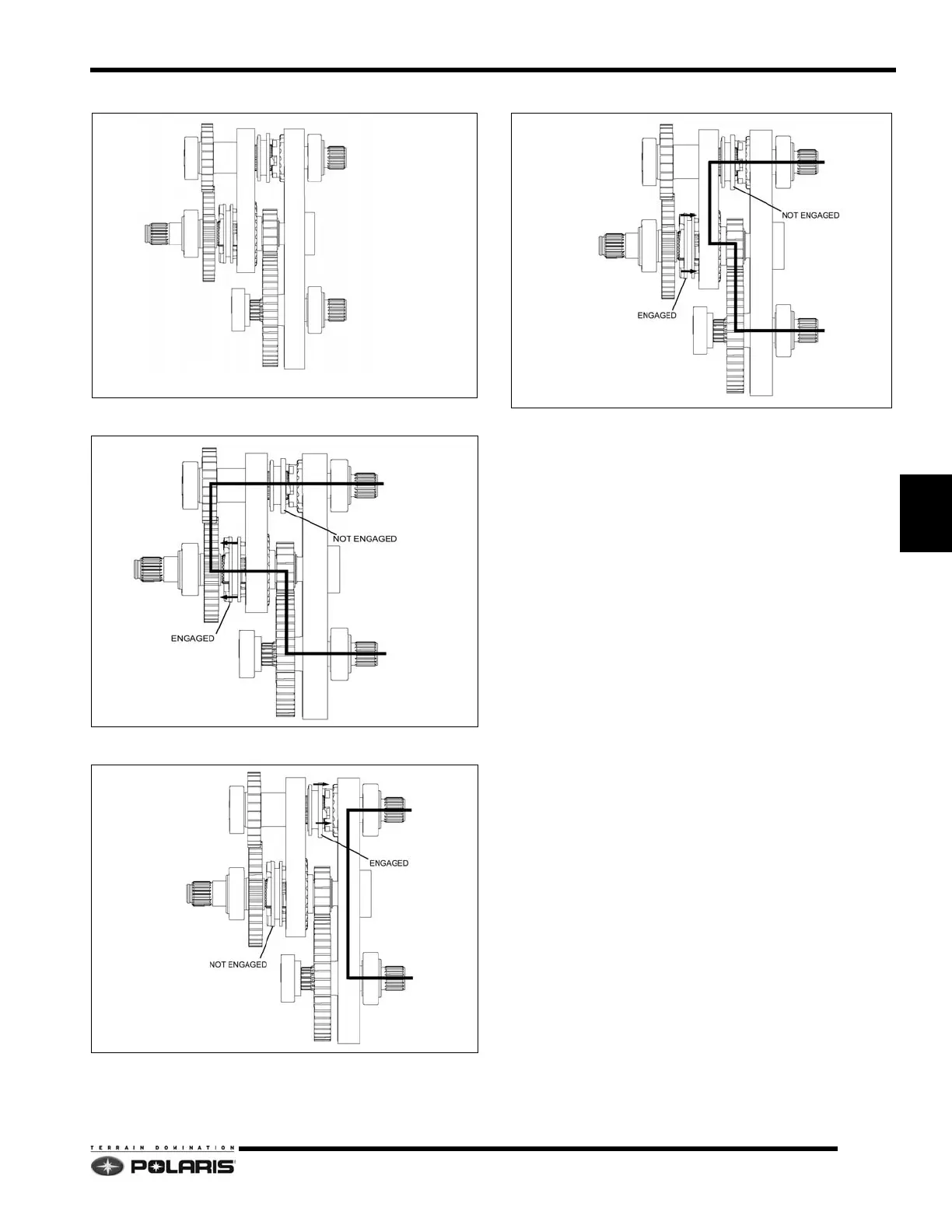

12. Gear, shaft, and chain cluster assembly shown.
Low gear output power flow.
High gear output power flow.
Reverse output power flow.
INPUT SHAFT
LOW/RVS SHAFT
OUTPUT SHAFT
