4.7
Fuel System
4
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

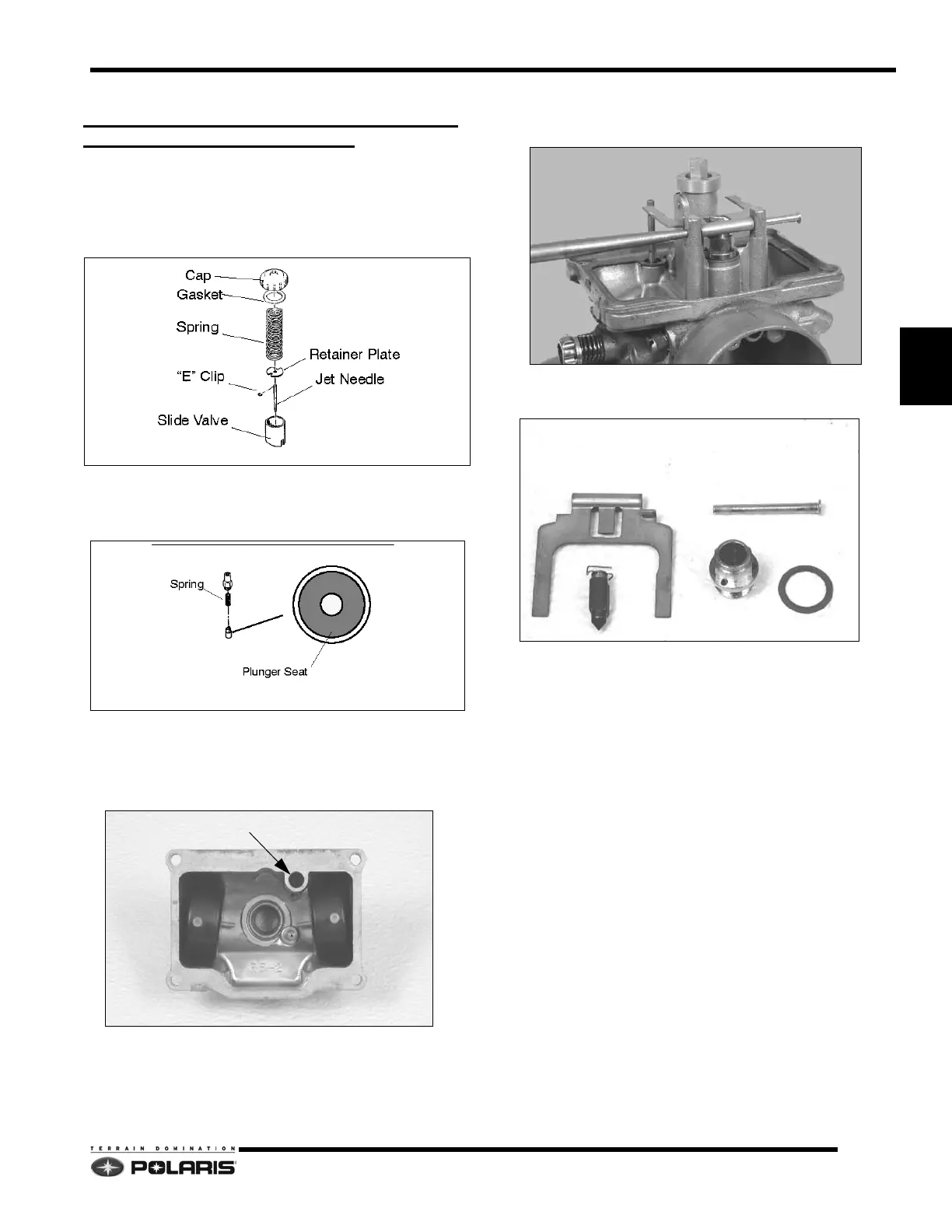

VM CARBURETOR DISASSEMBLY /
INSPECTION / ASSEMBLY
VM Carburetor Disassembly
1. Remove the throttle slide cap, spring, and throttle
slide. Extract the retainer to remove the needle and
throttle cable plug.
2. Remove the choke plunger. Inspect the plunger for
wear and replace if required. Inspect the plunger seat
for damage or foreign material.
3. Check the choke plunger and cable movement.
Plunger must move up and down in bore without
binding.
4. Remove the float bowl. Inspect the choke fuel supply
passage.
5. Remove the float pin, then remove the inlet needle
and seat assembly.
6. Inspect the needle tip for abnormal wear and tear.
Replace if required.
