Polaroid 8035 - Installation of the Low Voltage Power Supply; Removal of the Light Box Assembly

8K Series ProPalette Repair Manual Parts Replacement
143
4. Remove four screws which secure the low voltage supply to the drawer.(
Figure 5-21)
5. Remove the power supply safety shield and hardware (two 6-32 x 3/8 screws
and standoffs) for transfer to the new power supply.
REMOVE
FOUR
SCREWS
HOLDING
POWER
SUPPLY TO
DRAWER
LOW
VOLTAGE
POWER
SUPPLY

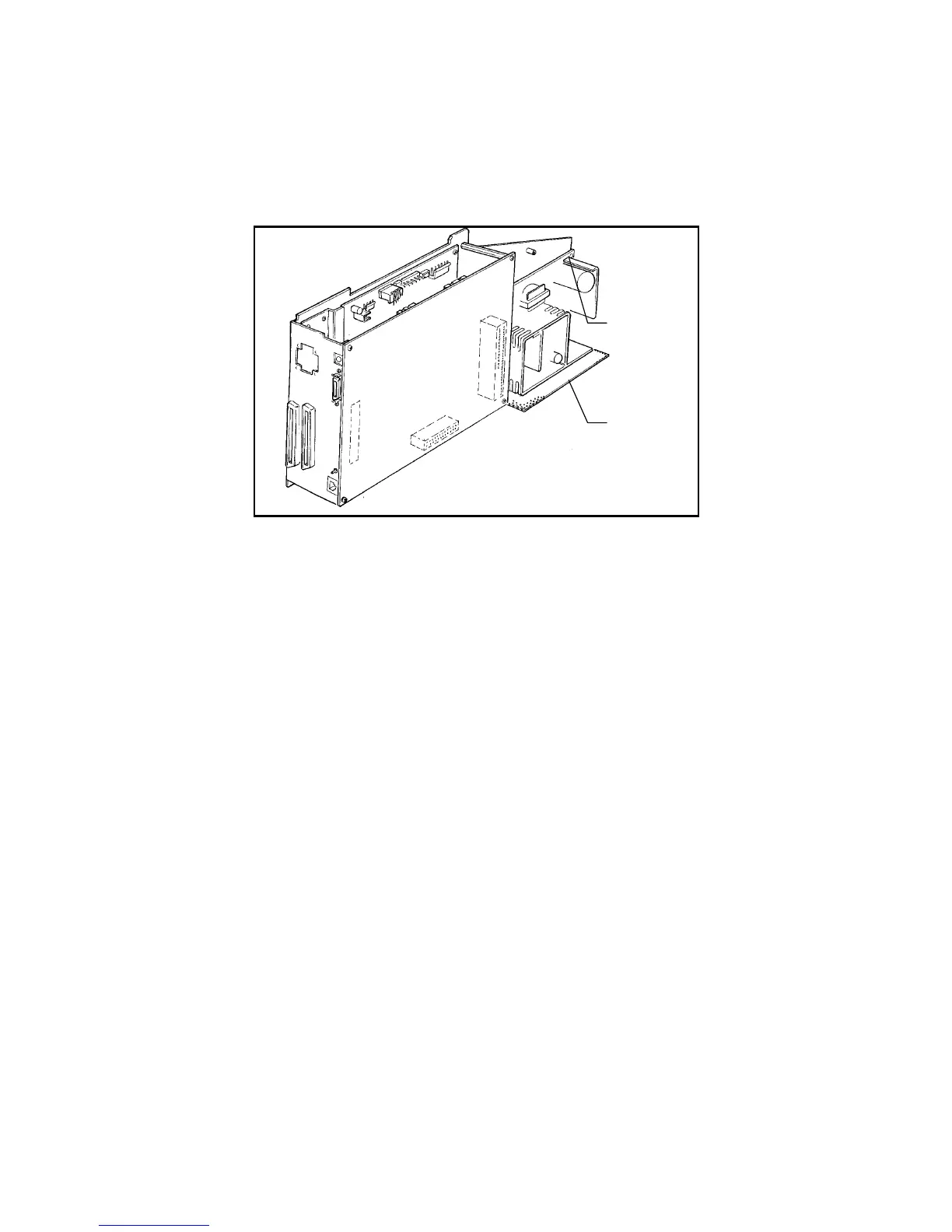

Figure 5-21. Removing the low voltage power supply
Installation of the Low Voltage Power Supply
Reverse the steps above.
Removal of the Light Box Assembly
Note: The CRT and Light Box are provided as a calibrated
assembly. They are not to be separated.
1. Remove the Front Bezel Assembly.
2. Remove the Camera Plate Assembly.
3. Remove the Access Panel.
4. Remove the Top Cover and Rear Panel Assembly.
