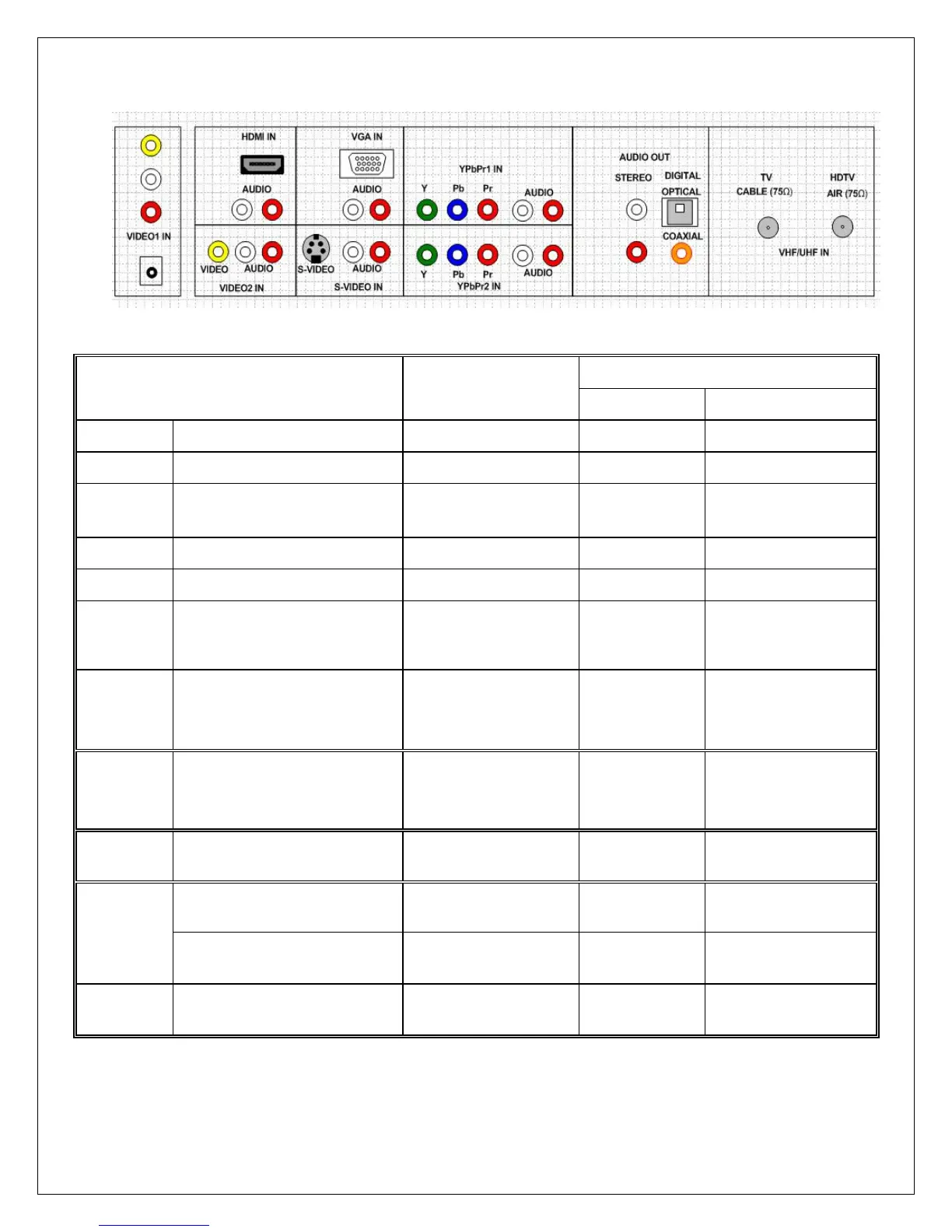

INPUT Source:
Connector types Inputs &
Outputs
Signals Video Format
OSD
TV Analog TV NTSC F Type TV (CABLE/AIR)
DTV Digital TV 8VSB F Type HDTV (CABLE/AIR)
VIDEO1 Video + L/R Audio +
Earphone Out
CVBS RCA VIDEO1 (SIDE)
VIDEO2 Video + L/R Audio CVBS RCA VIDEO2 (REAR)
S-VIDEO S-VIDEO+ L/R Audio Y/C Mini Din 4 Pin VIDEO3 (S-VIDEO)
YPbPr1 Component
(Y, Pb/Cb, Pr/Cr)
+ L/R Audio
480i, 480p, 720p,
1080i
RCA VIDEO4 (YPbPr1)
YPbPr2
Component
(Y, Pb/Cb, Pr/Cr)
+ L/R Audio
480i, 480p, 720p,
1080i
RCA VIDEO5 (YPbPr2)
HDMI HDMI Digital RGB +Digital
Audio
HDMI 19 Pin
VIDEO6 (HDMI)
VGA
VGA+ L/R Earphone
Analog RGB D-SUB 15 Pin COMPUTER (VGA)
L/R Audio RCA STEREO
AUDIO
OUT
Digital Optical/COAXIAL TOSLINK/RCA
DIGITAL
AC IN AC Power IN AC 100~240V YC14 AC IN
