Chapter 2 Installing the LCD TV
Use an audio cable to connect the external A/V device’s audio output jacks to the LCD
TV’s audio inputs. Use a S-Video cable to connect the external A/V device’s S-Video
output jack to the LCD TV’s S-Video IN input jack.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To view the A/V device’s with component input, press the INPUT button on the remote
repeatedly to select VIDEO2.

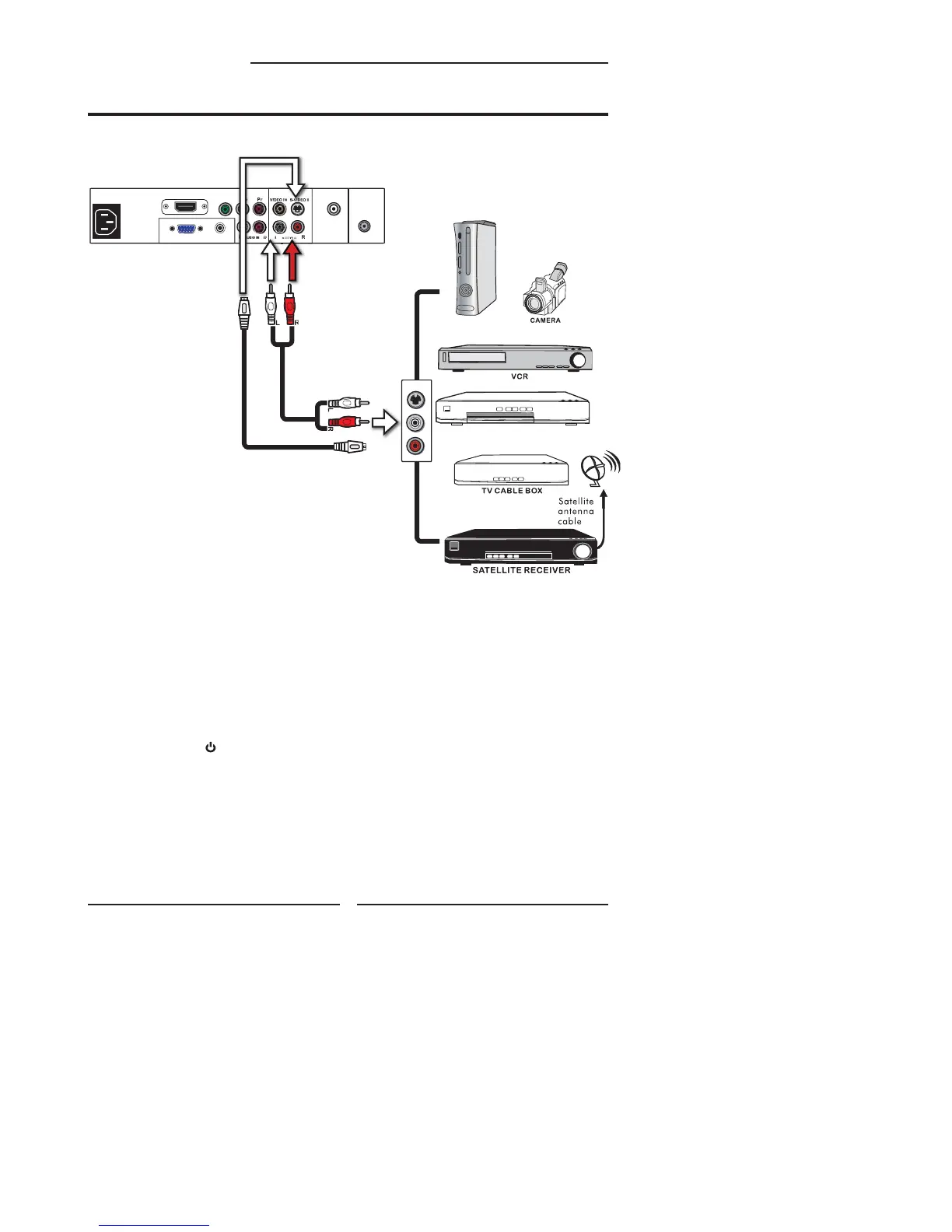

Connecting an A/V Device with S-Video Connector
HDMI IN
L R
PC/VGA IN
PC AUDIO IN
VIDEO IN S-VIDEO IN
COAXIAL
VHF/UHF IN
YPbPr
AUDIO IN
Rear of TV
AUDIO Cable
S-VIDEO Cable
GAME CONSOLE
DVD PLAYER
L
R
S-VIDEO OUT
To Next Page
