F2-V2-M4 Owner’s Manual 10/20/2017
If the spring guide is needed to secure the buffer tube, reinstall it in the gearbox, otherwise it can be omitted.
Reinstall the trigger and trigger spring.
Route the airline and wire harness out of the gearbox and carefully replace the other half of the gearbox shell, making sure
that no wires are pinched between the halves. Once the gearbox is reassembled it can be installed into the replica body.
Alignment
Once the gearbox has been installed in the replica body, verify that the nozzle is aligned with the hopup and inner/outer
barrels. This can be done by looking down the barrel with a flashlight. If the nozzle is not centered within the barrel some
shimming of the gearbox may be required.
MAKE SURE THE RIFLE IS UNLOADED AND DISCONNECTED FROM ANY AIR SOURCE WHEN CHECKING ALIGNMENT
Velocity and Dwell Adjustment
Set the dwell (dP setting) to the maximum value, then adjust the air rig output pressure until the desired velocity is
reached. Once the velocity is set, reduce the dwell until velocity begins to drop. This is the point at which any additional
dwell is unnecessary because the air is not being used to accelerate the round.
Velocity and cyclic rate are independently adjustable; however, due to the nature of pneumatic systems the maximum
potential cyclic rate is related to input pressure. As input pressure is increased, the maximum potential cyclic rate will also
increase.

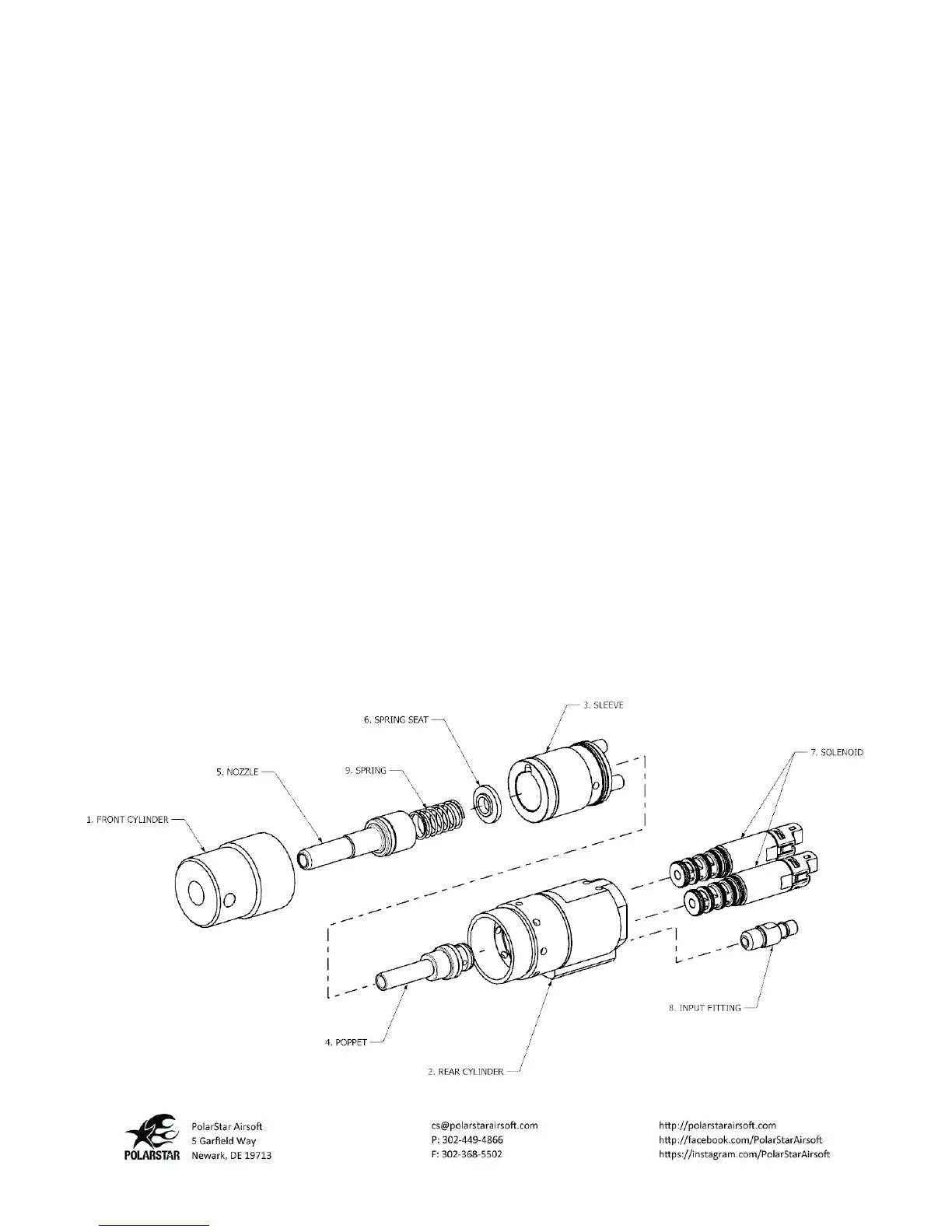

Disassembly and Maintenance
F2 units can be disassembled for maintenance by simply unscrewing the front cylinder and removing the internal
components.
