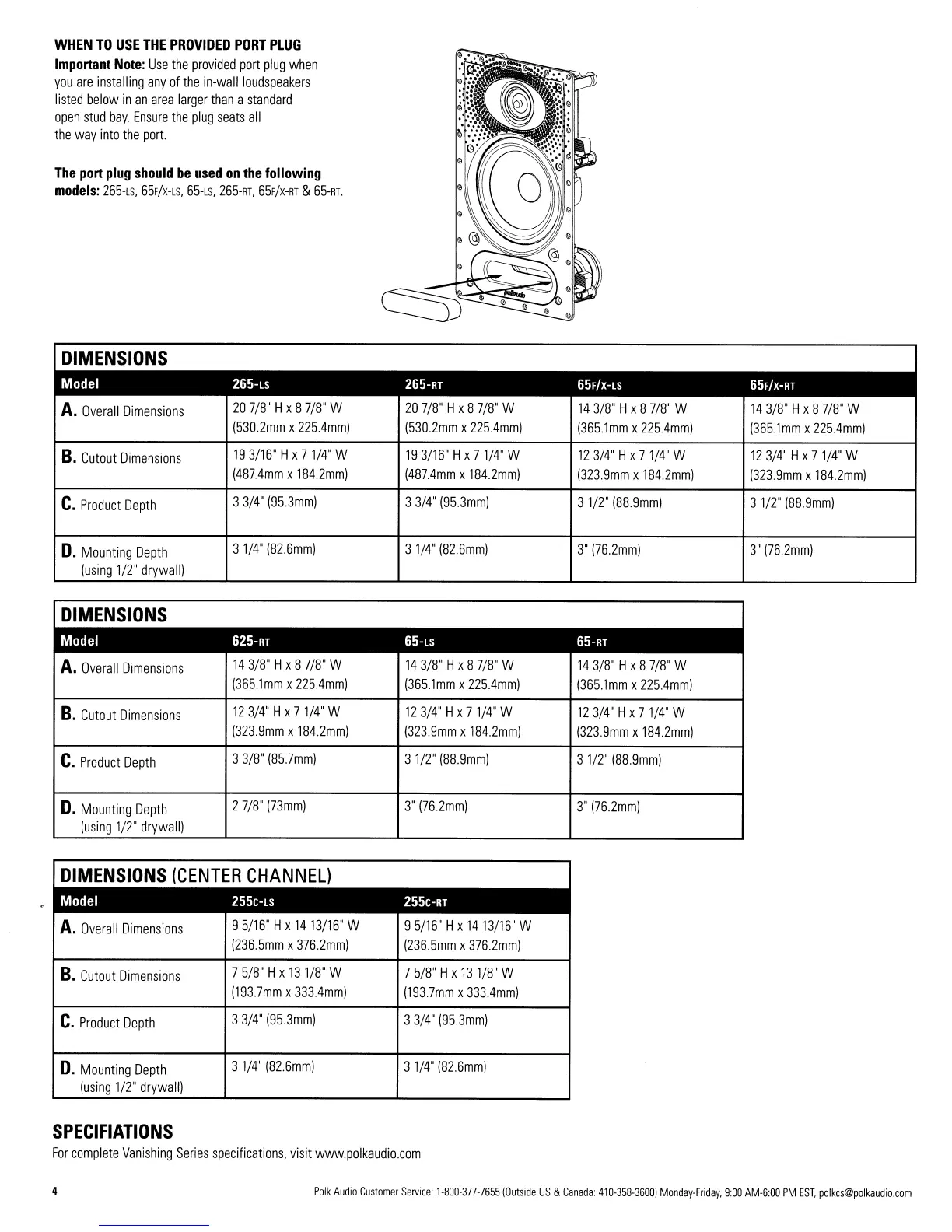

WHEN TO USE THE PROVIDED PORT PLUG
Important Note: Use the provided port plug when
you are installing any of the in-wall loudspeakers
listed below in an area larger than a standard
open stud bay. Ensure the plug seats all
the way into the port.
The port plug should be used on the following
models: 265-lS, 65F/x-ls, 65-lS, 265-RT, 65F/x-RT & 65-RT.
A. Overall Dimensions
207/8" Hx 8 7/8" W
207/8" Hx87/8"W
143/8" Hx 8 7/8" W 143/8" Hx8 7/8" W
(5302mm x 225.4mm) (530.2mm x 225.4mm)
(365.1mm x 225.4mml
(3651mm x 225.4mm)
B. Cutout Dimensions
193/16" Hx7 1/4" W 193/16" Hx 71/4" W 123/4" Hx7 1/4" W 123/4" Hx7 1/4" W
(487.4mm x 184.2mm) (487.4mm x 184.2mm)
(323.9mm x 1842mml (323.9mm x 184.2mm)
C. Product Depth
3 3/4" (95.3mm) 3 3/4" (95.3mm) 3 1/2" (88.9mm) 3 1/2" (88.9mm)
D. Mounting Depth
3 1/4" (82.6mm) 3 1/4" (82.6mm)
3" (76.2mm) 3" (762mm)
(using 1/2" drywall)
A. Overall Dimensions
143/8" Hx8 7/8" W
143/8" Hx8 7/8" W
143/8" Hx87/8" W
(365.1mm x 225.4mm) (365.1mm x 225.4mm)
(365.1mm x 225.4mml
B. Cutout Dimensions
123/4" Hx 71/4" W 123/4" Hx 71/4" W
123/4" Hx7 1/4" W
(323.9mm x 184.2mm) (323.9mm x 1842mm) (323.9mm x 184.2mml
C. Product Depth
3 3/8" (85.7mm) 3 1/2" (889mm) 3 1/2" (88.9mm)
D. Mounting Depth
27/8" (73mm) 3" (76.2mml 3" (76.2mm)
(using 1/2" drywall)
A. Overall Dimensions
95/16" Hx 14 13/16" W 95/16" Hx 14 13/16" W
(236.5mm x 376.2mm) (236.5mm x 3762mm)
B. Cutout Dimensions
75/8" Hx 131/8" W 7 5/8" Hx 13 1/8" W
(193.7mm x 333.4mm) (193.7mm x 333.4mm)
C. Product Depth
33/4" (95.3mm) 3 3/4" (95.3mm)
D. Mounting Depth
3 1/4" (82.6mm) 3 1/4" (82.6mm)
(using 1/2" drywall)
SPECIFIATIONS
For complete Vanishing Series specifications, visit www.polkaudio.com
