Polk Audio ATRIUM - ALTERNATE SECURE MOUNTING; SAFETY FIRST

8
For Customer Service, call 800-377-7655.
9
ALTERNATE SECURE MOUNTING
For more solid mounting, screw the bracket
directly into a weight-bearing stud on the
mounting surface.
Place the screws securely in the smaller
end of the keyhole slot. Do not leave
screwheads protruding.
Attach and remove the speaker from the
permanently secured bracket by tightening
and loosening the bracket knobs [as shown
in figure 13].
Get more information and exclusive accessories, visit www.polkaudio.com
Insert speaker wire
through hole
Inserte el alambre para la
bocina en el orificio
Insérer le fil du haut-parleur
dans le trou
Lautsprecher-Draht durch
das Loch schieben
Loosen hex nut
Desenrosque parcialmente
la tuerca hexagonal
Desserrer l’écrou
Sechskantmutter lösen
Tighten hex nut
Enrosque la tuerca de nuevo
Serrer l’écrou
Sechskantmutter festschrauben
Do not insert insulated
section of speaker wire
No inserte alambre con
material aislante
Ne pas insérer la partie
isolée du fil du haut-parleur
Isolation des Lautsprecher-
Drahtes nicht in das Loch
schieben

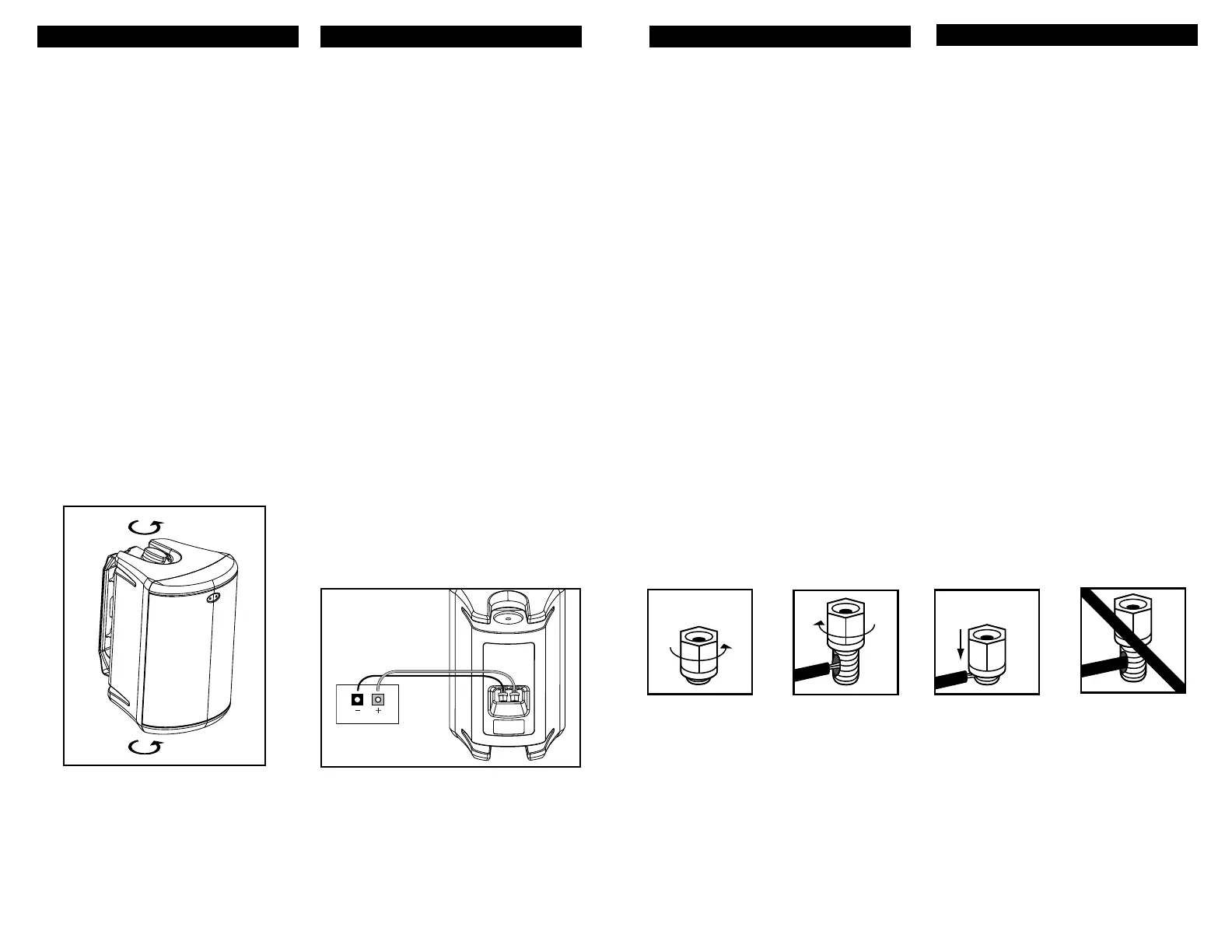

FIGURE 15
USING 5-WAY BINDING POSTS
EL USO DE POSTES DE
CONEXIÓN DE CINCO
POSICIONES
UTILISATION DES BORNIERS
“CINQ FAÇONS”
GEBRAUCH VON FUNFER-
VERBINDUNGSBOLZEN
FIGURE 13
Adjust the bracket knobs to aim the speaker.
Ajuste las perillas del soporte para orientar el altavoz.
Ajustez les boutons du support pour diriger l'enceinte.
Stellen Sie die Position des Lautsprechers über die
Knöpfe an der Halterung ein.
FIGURE 14
Make speaker connections using binding posts.
Haga las conexiones del altavoz con los tornillos de presión.
Branchez les fils de haut-parleur aux bornes des enceintes.
Nehmen Sie die Lautsprecheranschlüsse über die Klemmen vor.
Black
Red
receiver
SAFETY FIRST
When installing Atrium speakers be aware
of the weight of your particular model
(Atrium45=approx 5lbs/2.3kg ea,
Atrium55=approx 7lbs/3.2kg ea) and the
weight bearing tolerance of the material to
which you are mounting the speaker. If you
are not sure of a safe way of mounting your
speakers please consult a professional
installer, your authorized Polk Audio
dealer, or a building contractor.
You will maximize the useful life of your
Atrium speakers by placing them where they
will receive less exposure to the elements. If
extreme weather conditions are expected, we
recommend storing your speakers indoors.
Look for the best overall compromise
between sound quality, convenience and
exposure. Do not compromise safety.
