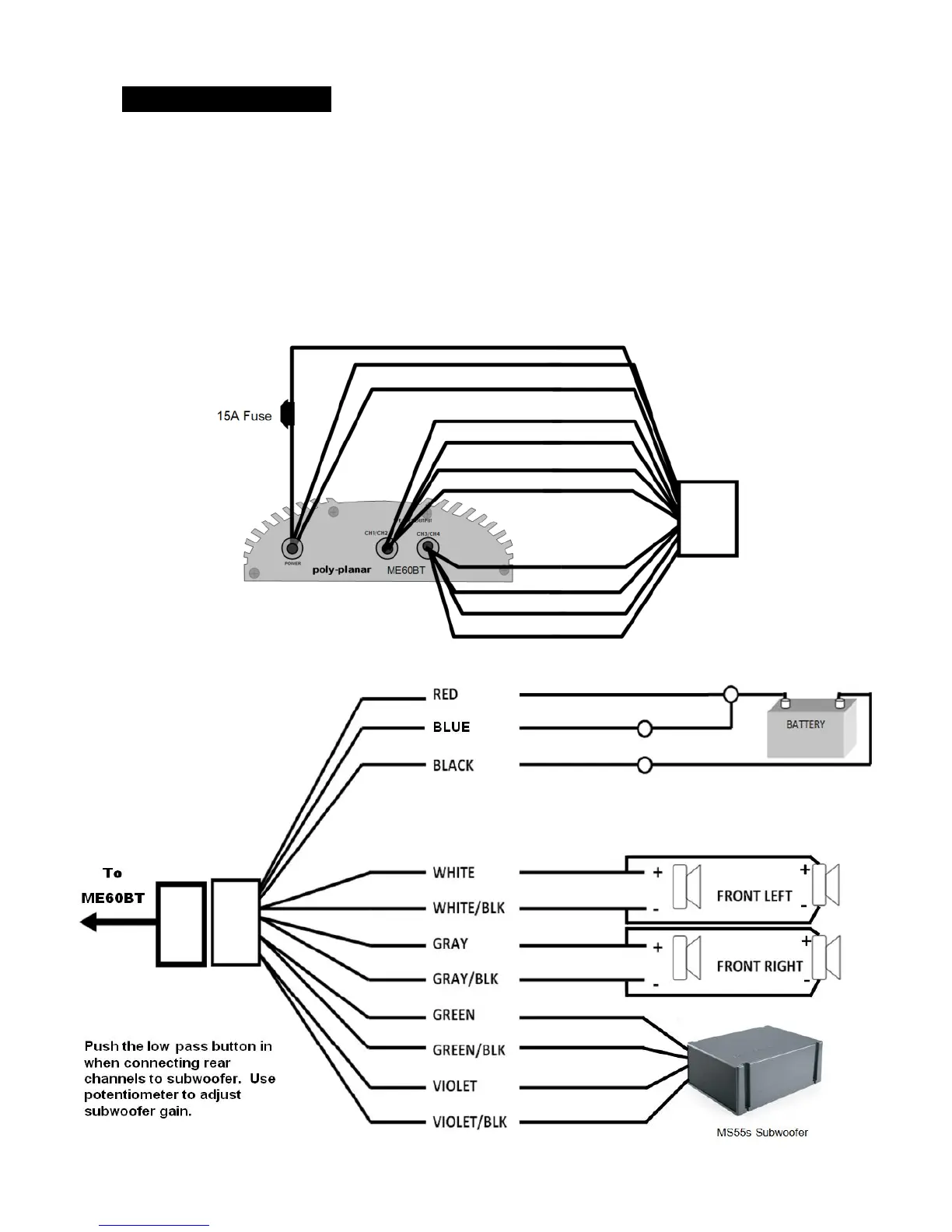

Wiring Details:
Use the wired plug end (Pigtail) provided to make power and speaker
connections according to the diagram below. Using this connector will make it
easy to disconnect the amplifier for adding additional features or service.
Removing the factory plug end will void warranty.
