GP44 Semi-Automatic Strapping Machine
OPERATION -13-

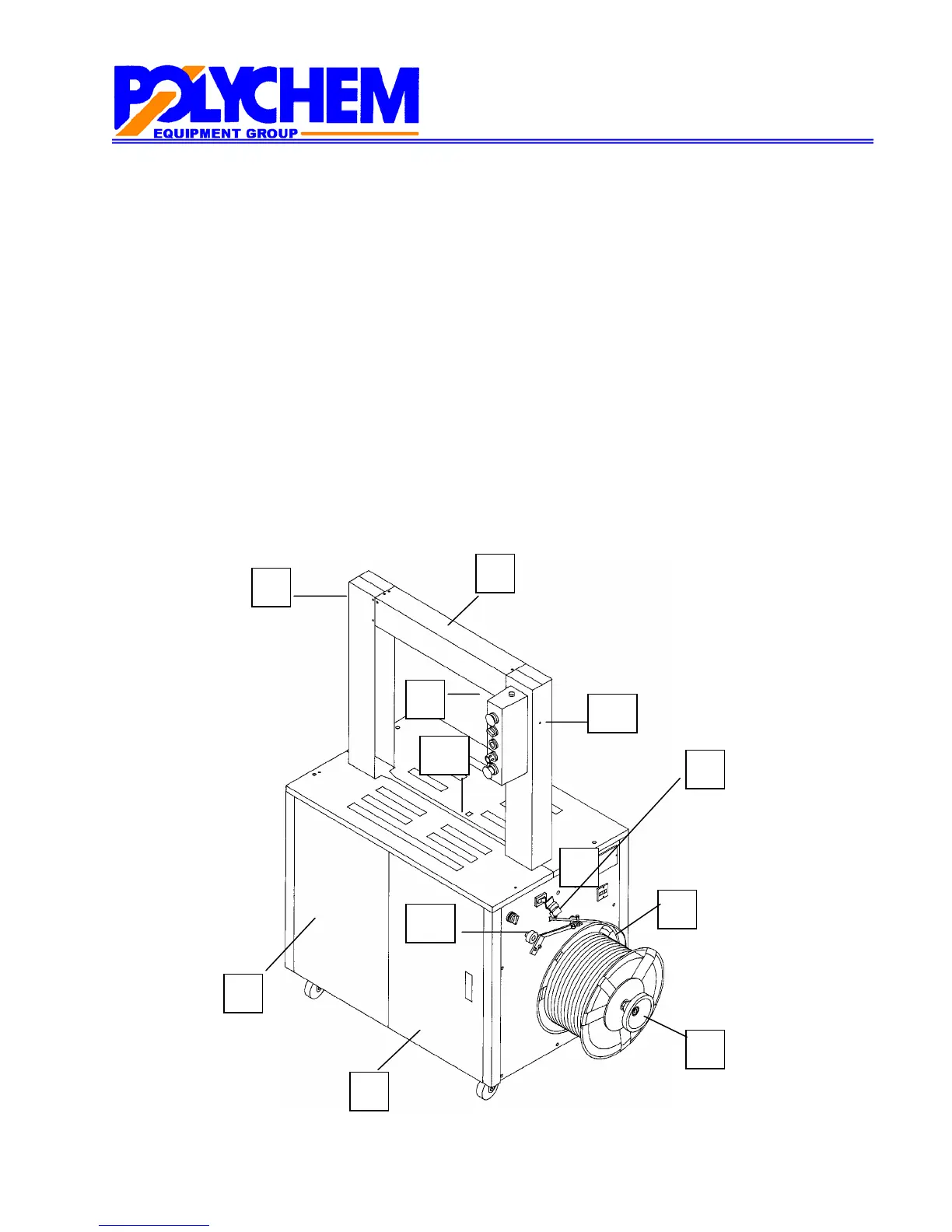

NAME OF PART and FUNCTION
1.Control Box
2.Reel Coil
3.Reel Nut
4.V-Roller
5.Sensor: Strap detect sensor (53)
6.Front Door
7.Front panel
8.Arch B
9.Arch C
10.Arch D
11.Tension Adjust Knob: Turn right to increase tension.
12.Sensor: Parcel detect sensor (57)
