GP44 Semi-Automatic Strapping Machine
OPERATION -14-

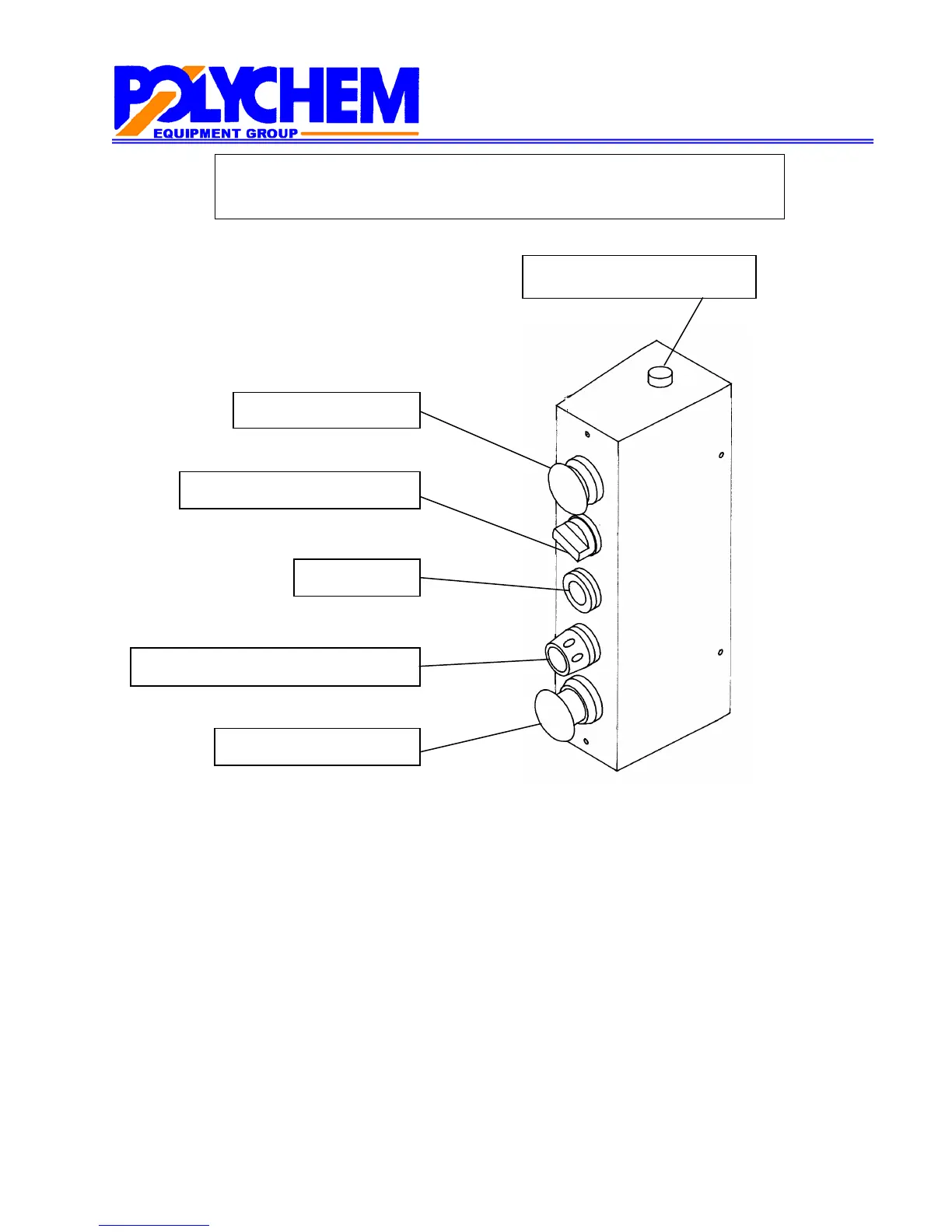

MAGNETIC OPERATION CONTROL BOX (GP44)
Note: Control Box can be re-posted on either side of the machine.
1. Strap Feed Complete Light
Green light glows when strap has fed into the arch completely.
2. Manual Strap Switch
Press this switch to start strapping operation, when in manual mode.
3. Auto/Manual Select Switch
Strapping procedure can be selected by this switch.
Auto: Strap cycle initiated by photo eye S7
Manual: Strap cycle initiated by Manual Strap Switch or Foot Switch
4. Reset Switch
Strap Feed Complete Light
Manual Stra
Switch
Auto/Manual Select Switch
Reset Switch
Circuit Power Switch (With Light)
Emergency Stop Switch
