Polychem GP44 - Heater Blade Position Adjustment; Height of Heater Plate; Adjustment to Right and Left

GP44 Semi-Automatic Strapping Machine
OPERATION -38-

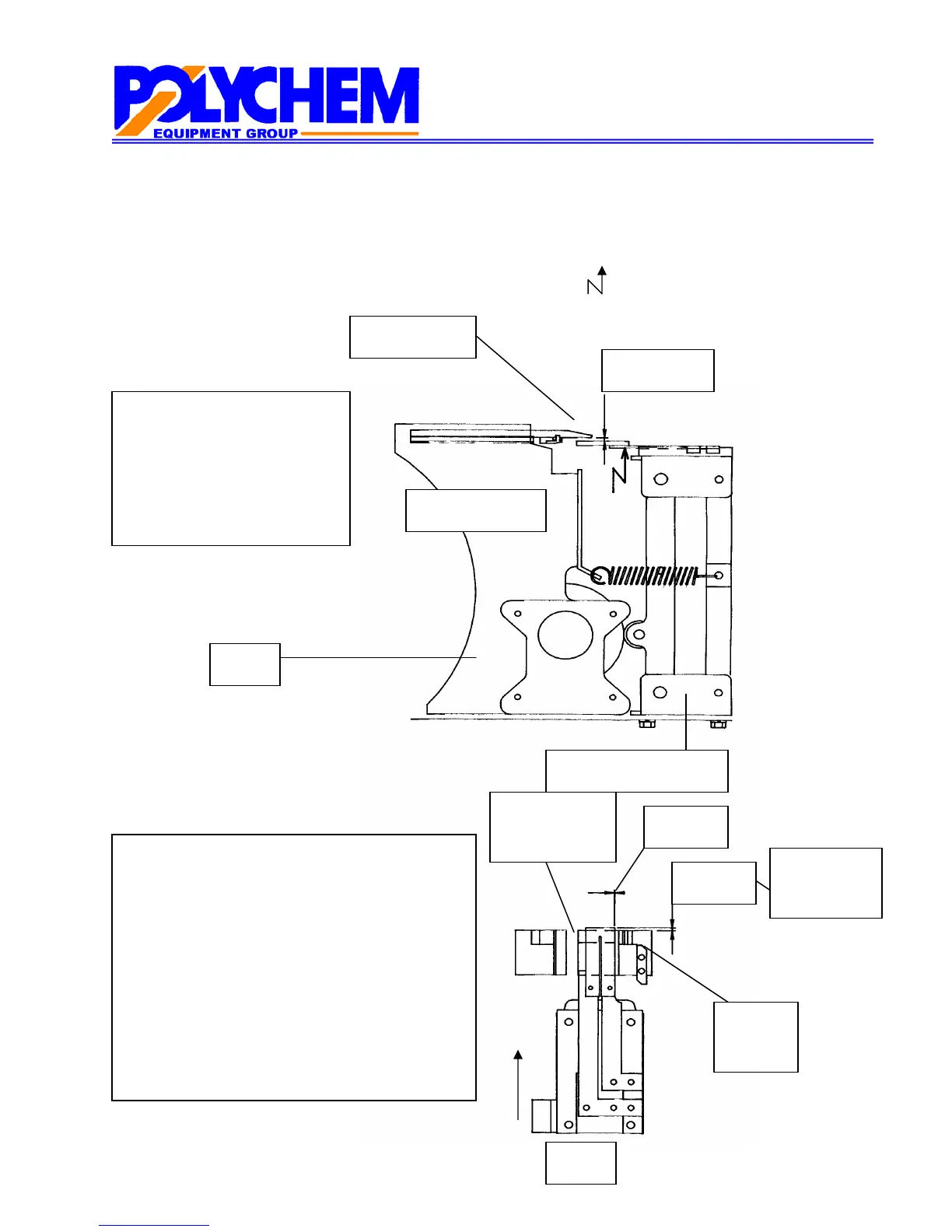

ADJUSTMENT OF HEATER BLADE POSITION
1. Height of heater plate
The clearance between heater plate and slide plate must be 2mm –3mm.
Heater plate can be carefully bent at the part of the mark.
Pulle
y
Lock Nut
and Screw
This spring length should be maintained at
approximately 2 ¼ “
Sliding Plate
2mm-3mm
Home Position
CAUTION
Disconnect power before
attempting maintenance
or adjustment to the
machine.
2. Adjustment to right and left.
Adjust heater plate when it goes to the back
position by cam.
Heater plate must be paralleled to the left
side of 1
st
clamp.
The tip of heater plate stands out 0.5mm
from the end of compression.
Heater plate can be adjusted by moving
heater rod bracket. (Refer to fig 1)
Heater Rod Bracket
Fig 1
0.5mm
Surface
1
st
Gripper
Fig 2
Compression
Gripper
