GP44 Semi-Automatic Strapping Machine
OPERATION -39-

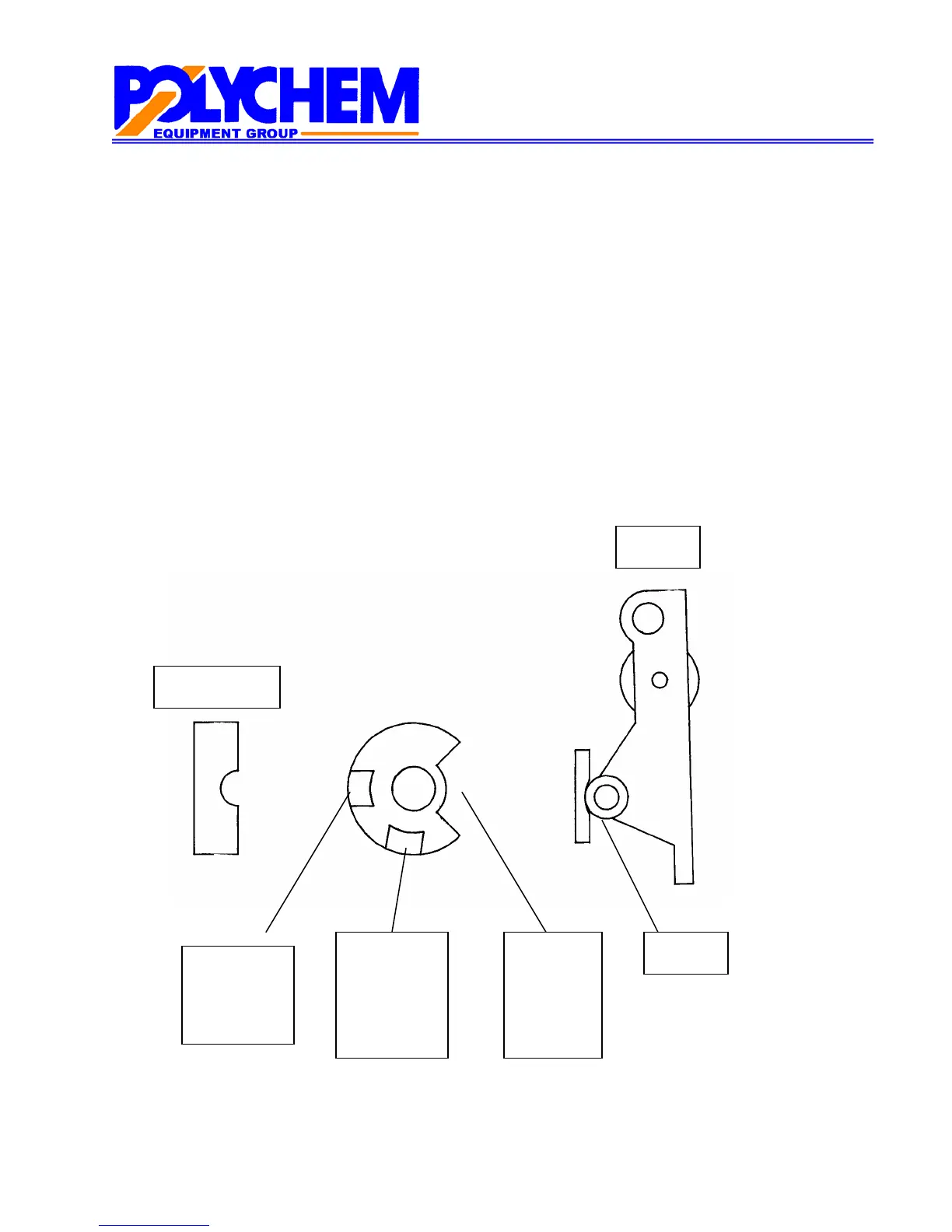

HOME POSITION AND INITIAL RETRACTION POSITION FOR CAM SHAFT
1. There are two detents on the bracket cam.
2. When bracket bearing comes into the detent, home position and initial
retraction position of cam shaft is decided.
3. When bracket bearing comes into the cavity for high tension position,
high tension is made.
Bracket Cam
Detent for
home
position
Detent for
initial
retraction
position
Cavity
for high
tension
position
Bearing
Bracket
